Slim Outdoor LED with Full Front and Rear Service Access
The SQ Series is StarLED's outdoor fixed LED display built on a slim die-cast aluminium cabinet just 85 mm deep. Unlike outdoor cabinets that require rear-only service, the SQ Series supports both front and rear access for modules and power boxes. Available in 4 cabinet sizes — 1000×1000, 1000×500, 750×1000, and 750×500 mm — and compatible with 5 pixel pitches from P3.9 to P10.4 using 250×500 mm modules. IP65 front, IP54 rear, up to 8,000 nits. Corner, round corner, and curved installation with max ±5° between cabinets.
- Front + rear service — no rear corridor needed on facades

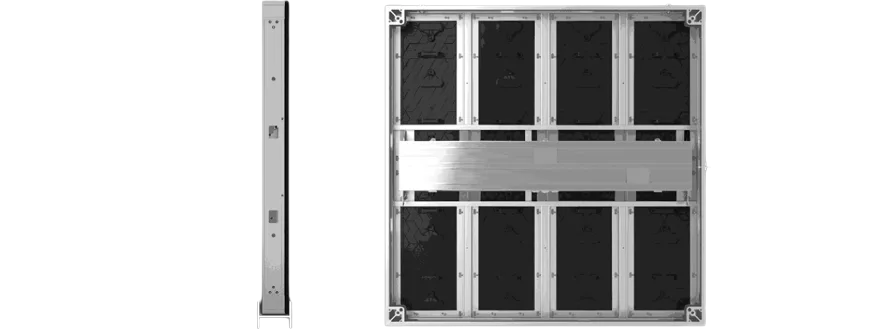

- 25 kg/m², 85 mm deep — direct wall mount, saves steel
- 4 cabinet sizes — any custom screen dimension
- IP65/IP54 — up to 8,000 nits in direct sunlight
- Corner + curved install — wraps buildings at ±5°
How SQ Reduces Installation Complexity on Dubai Facades
For Dubai facade installations where no rear corridor exists, front service eliminates the need for deep mounting structures. At 85 mm and 25 kg/m², the SQ mounts directly against the wall. Corner, round corner, and curved support at ±5° lets the display wrap around building geometry without custom panels or filler pieces. 1920 Hz+ refresh ensures clean camera capture for social media and broadcast.
- Front + rear service — no rear corridor needed
- 85 mm slim — direct wall mount, less steel
- Corner + round corner + curved at ±5°
- 1920 Hz+ for clean camera capture
| Factor | SQ Series | TQ Series | Magnesium |
|---|---|---|---|
| Material | Aluminium | Aluminium | Mg alloy |
| Depth | 85 mm | Varies | 104.5 mm |
| Weight/m² | 25 kg | Varies | ~32 kg |
| Service | Front + Rear | Rear | Rear (hinge) |
| Cab sizes | 4 sizes | Varies | 960×960 only |
| Curved | Yes, ±5° | No | No |
| Corner | Corner + Round | No | No |
| Brightness | Up to 8,000 | Varies | Varies |

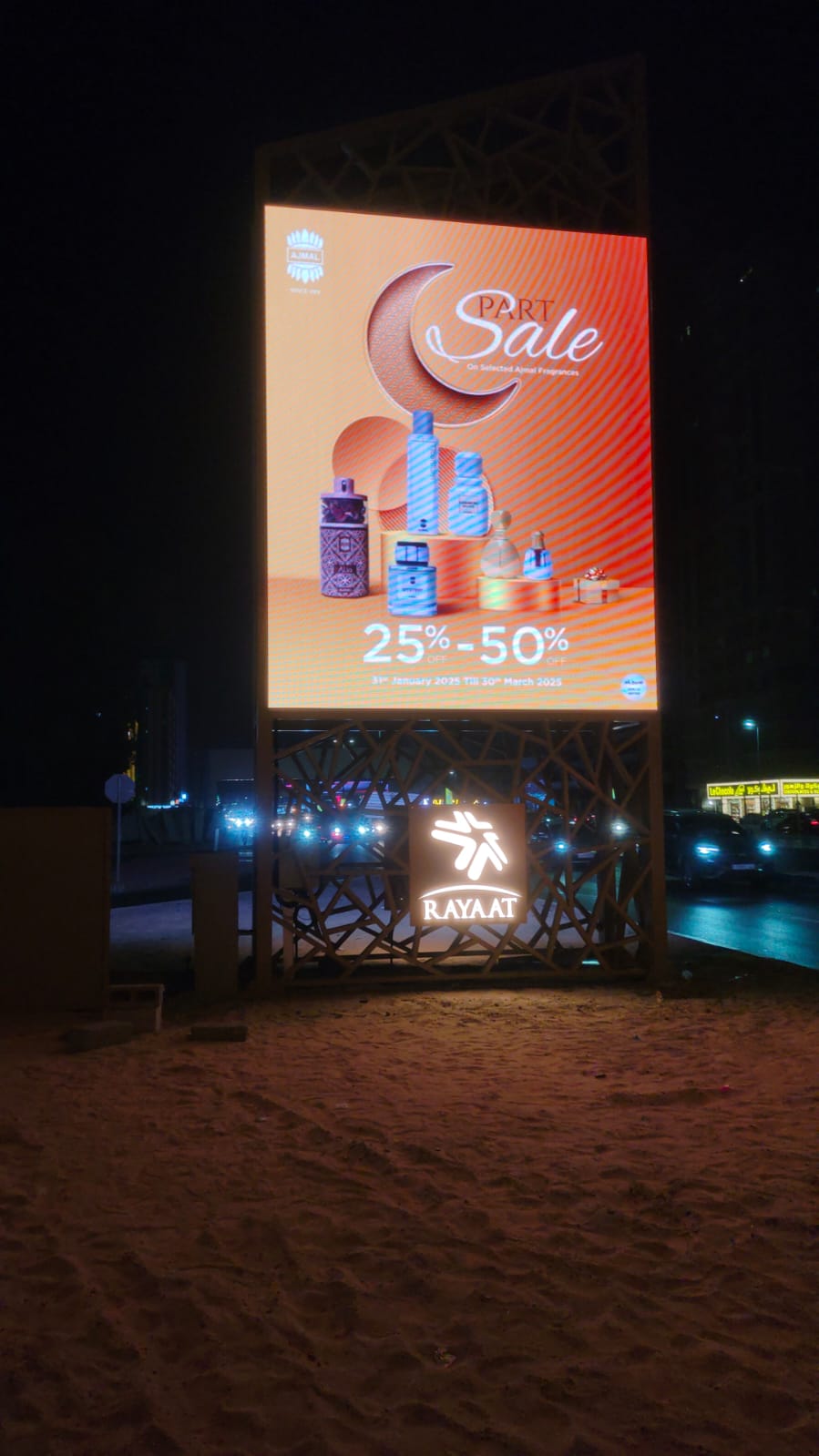

SQ Series Installed in Dubai
Real-world footage from StarLED's in-house installation team. Watch how the slim 85 mm cabinet, front-service access, and curved alignment perform on live UAE projects.
Why Dubai Buyers Specify the SQ Series

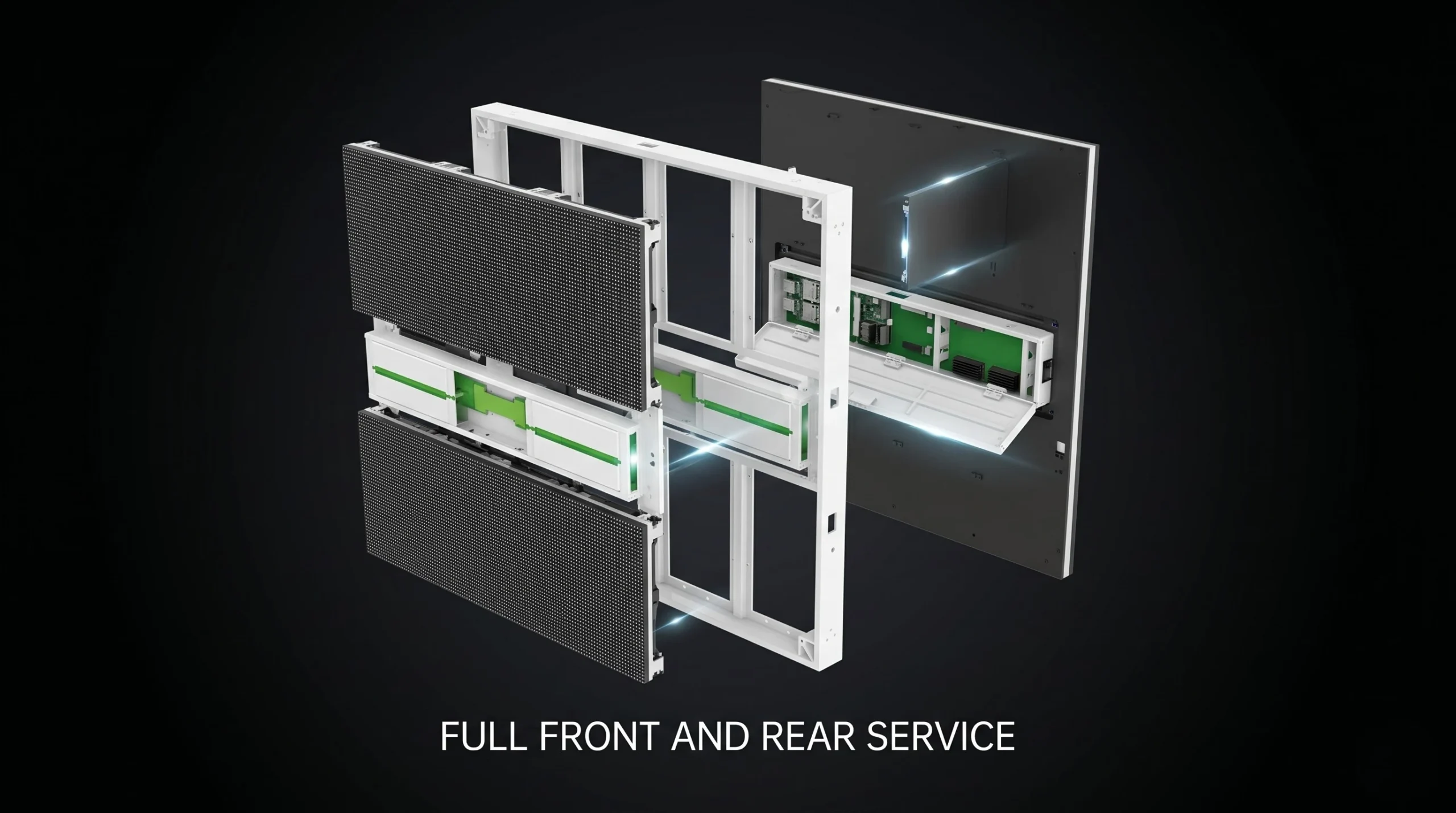

Both modules and power boxes serviceable from the front. No rear corridor needed. Where rear access exists, it remains the fastest option for batch work.
85 mm depth mounts directly against the wall. Reduces steel specification, simplifies Municipality permit, and delivers a cleaner finished look on modern facades.
Among the lightest outdoor fixed LED cabinets in Dubai. Reduces steel, crane category, and transport cost on every large project.

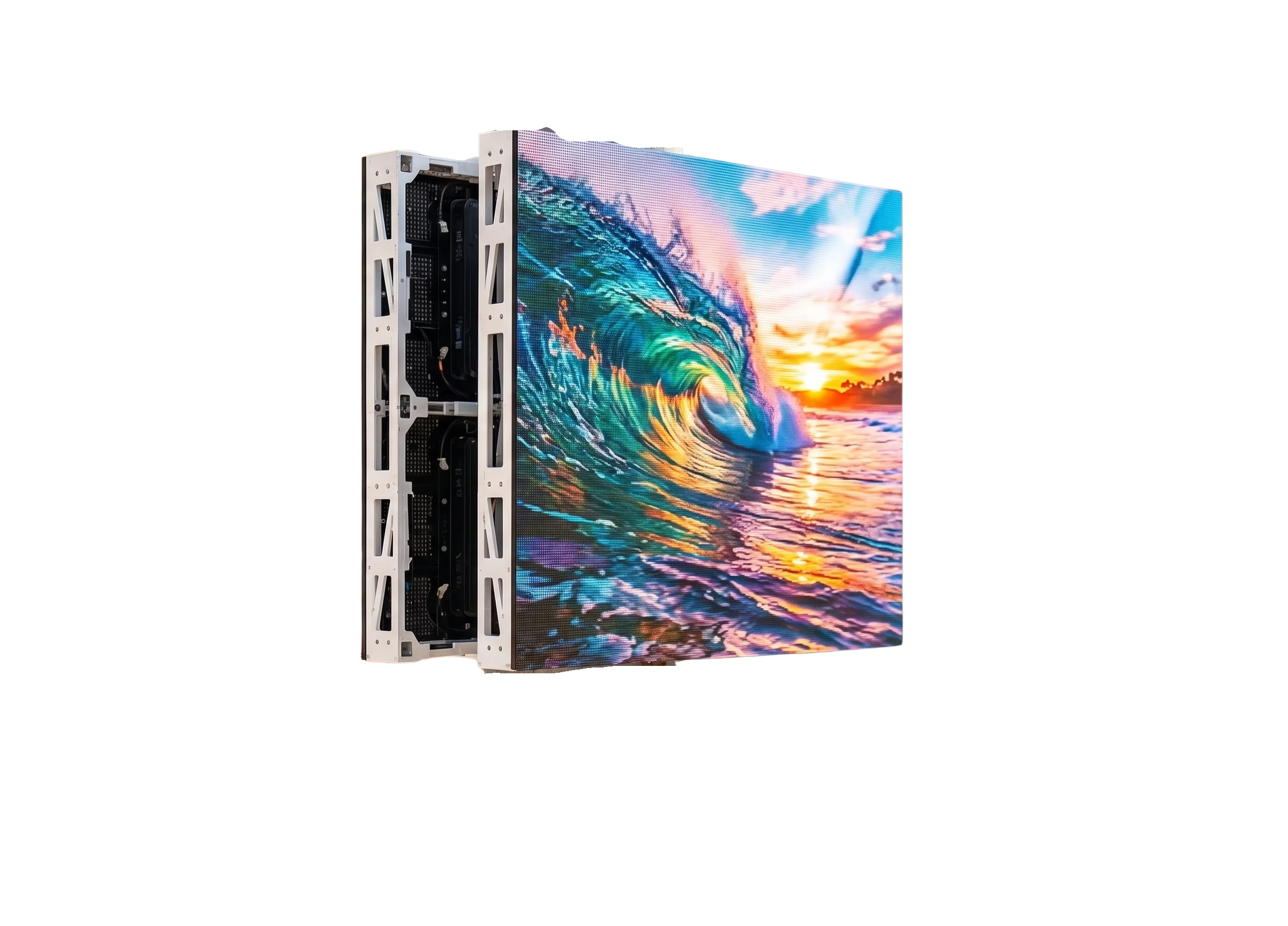

Clear in direct Dubai sunlight. Auto-dimming reduces power at evening without manual adjustment.

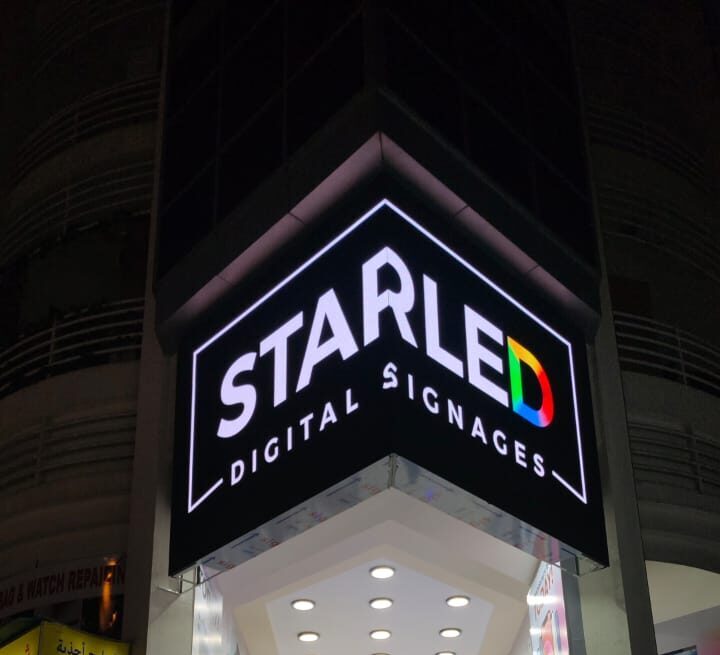

Flat, 90° corner, round corner, and curved. Wraps buildings without custom panels or visible gaps at joints.
1000×1000, 1000×500, 750×1000, 750×500 mm. Any custom screen dimension without filler panels.
SQ Series — Choose Your Pitch
All pitches use 250×500 mm modules. Choose based on viewing distance.
SQ Series Specifications
| Specification | Value |
|---|---|
| Cabinet Material | Aluminium (Die-Cast) |
| Cabinet Sizes | 1000×1000 / 1000×500 / 750×1000 / 750×500 mm |
| Cabinet Depth | 83.3 to 86.4 mm (varies by pitch) |
| Weight (1000×1000) | 25 kg |
| Weight (1000×500) | 14.5 kg |
| Weight (750×1000) | 19.5 kg |
| Weight (750×500) | 11.5 kg |
| Pitches | P3.9 / P4.8 / P6.9 / P8.3 / P10.4 |
| LED Type | SMD1921 (P3.9–P6.9) / SMD2727 (P8.3–P10.4) |
| Module Size | 250 × 500 mm |
| Brightness | 5,000–6,000 nits (varies by pitch) |
| Refresh Rate | 1920 Hz+ |
| Contrast | 3,000:1 |
| Greyscale | 14 bit+ |
| Viewing Angle | 140° H / 120–140° V |

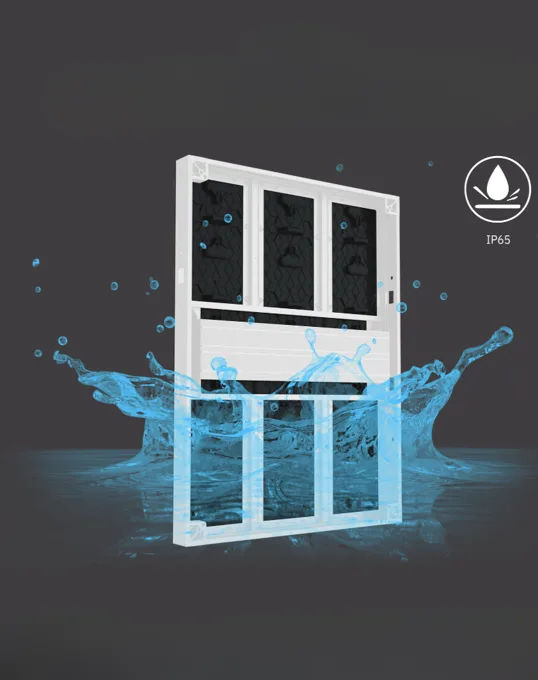

| IP Rating | IP65 front / IP54 rear |
| Service | Front + rear (modules + power) |
| Curved Install | Yes, ±5° between cabinets |
| Corner Install | Flat, 90°, round corner |
| Operating Temp | -20 to +50 °C |
| Lifespan | 100,000 hours |
| Certifications | CE, RoHS |
SQ Series Applications Across the UAE
85 mm sits flush against wall. Front service without disturbing mount. Corner and round corner wrap around building edges.
Up to 6,000 nits through midday glare. 4 cabinet sizes fit precise permit dimensions. 25 kg/m² reduces structural steel.
1920 Hz+ for clean broadcast capture. IP65 handles full weather. 4 sizes match exact venue dimensions.

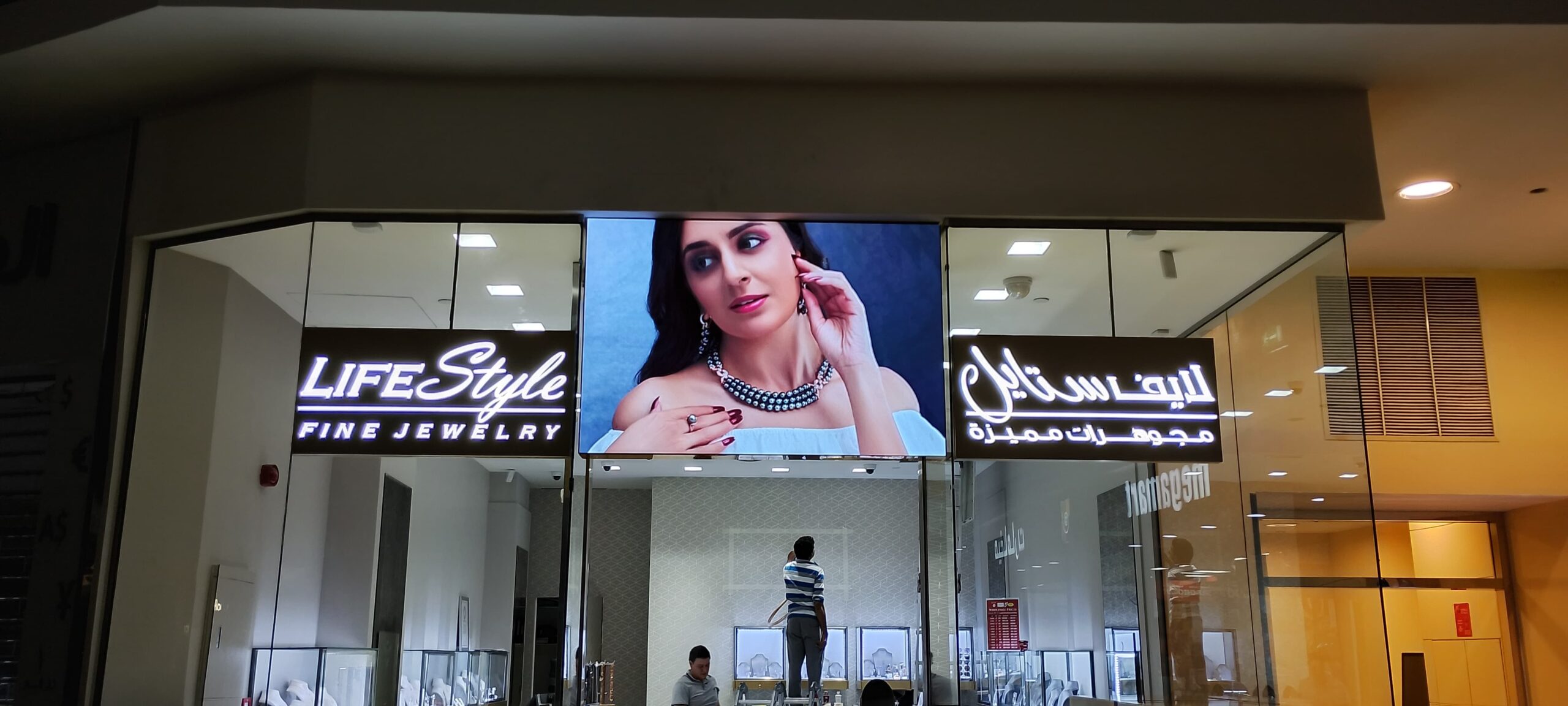

Sharp images for seasonal promotions at 2–8 m. Front service keeps downtime short during peak trading. 85 mm integrates cleanly.
140° viewing captures foot traffic both directions. Curved install follows curved facades common on Dubai hospitality properties.

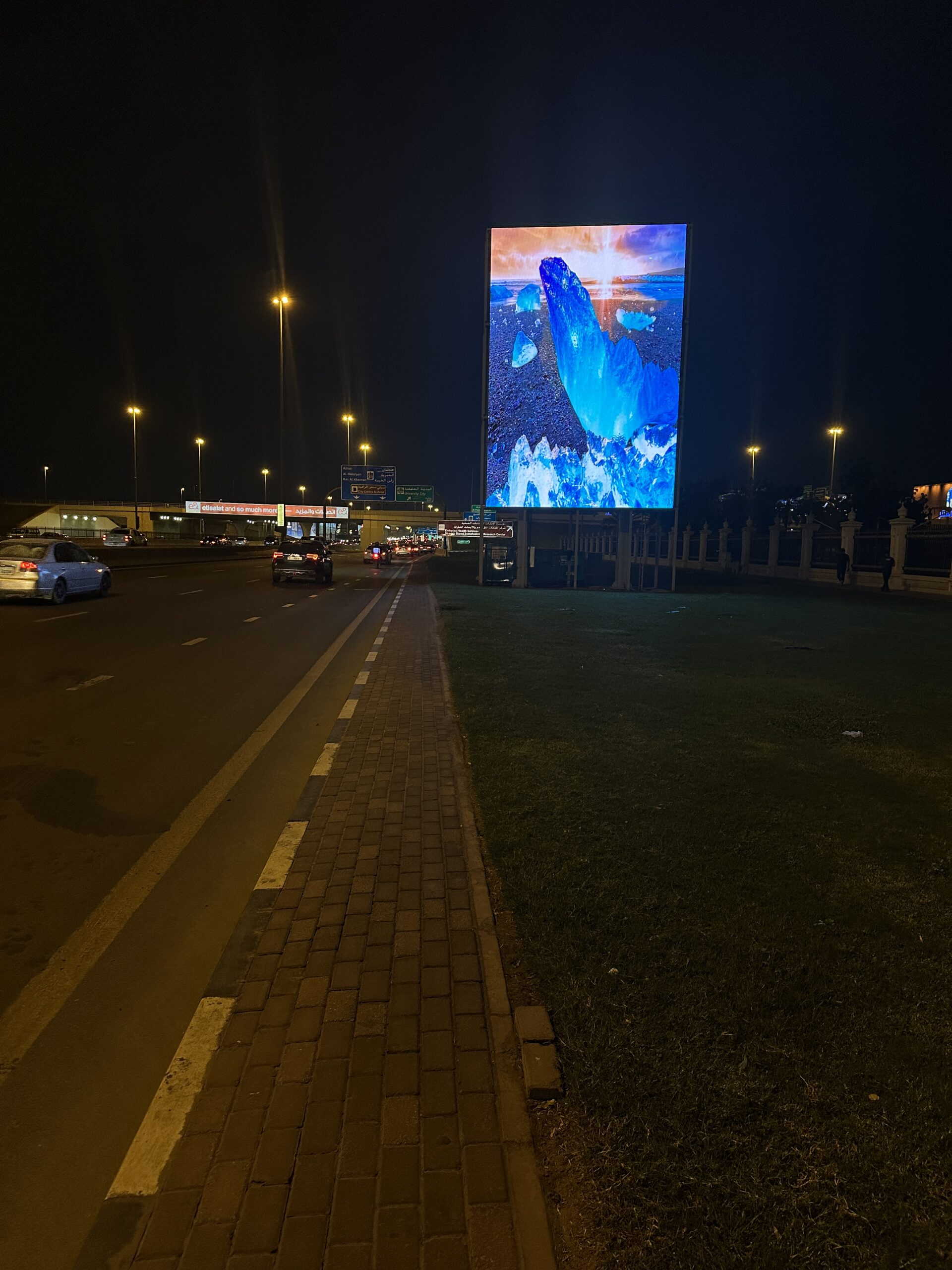

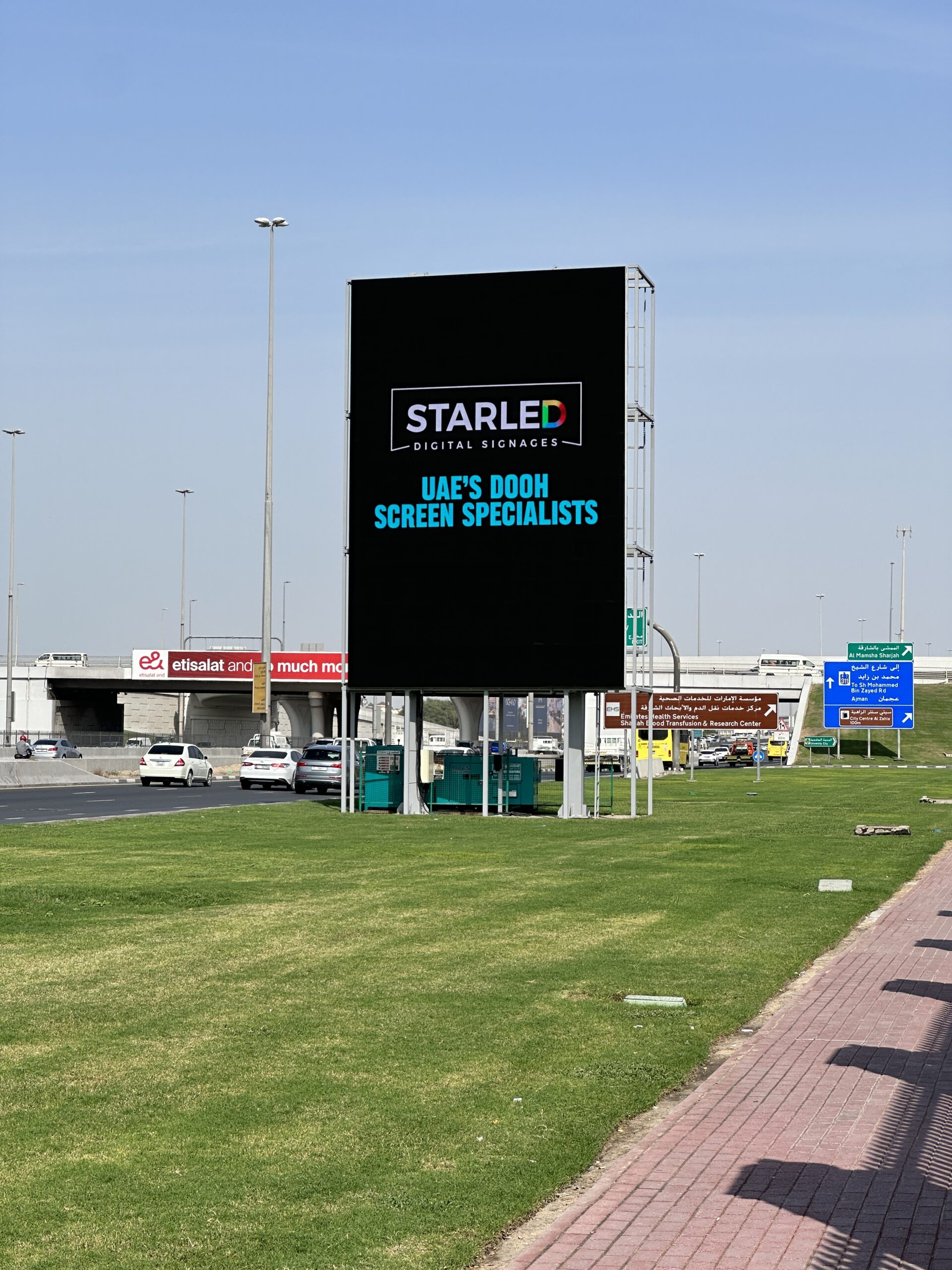

Max area per budget at 20 m+ viewing. High brightness at speed. 25 kg/m² reduces billboard pole spec.
SQ Series Installations
Every project specified, supplied, and installed by StarLED's in-house Dubai team.
About StarLED — Your Dubai LED Supplier
SQ cabinets at Al Khawaneej 2. Delivered and installed within a week. Bring a comparable quote and we'll beat it.
Site survey, structural assessment, Municipality docs, install, commissioning, CMS handover. All in-house.
Full spec documentation, IP65 test reports, and structural figures for Dubai Municipality permit applications.
On-site across Dubai and Abu Dhabi. Replacement cabinets held locally. Front service means fast warranty visits.
