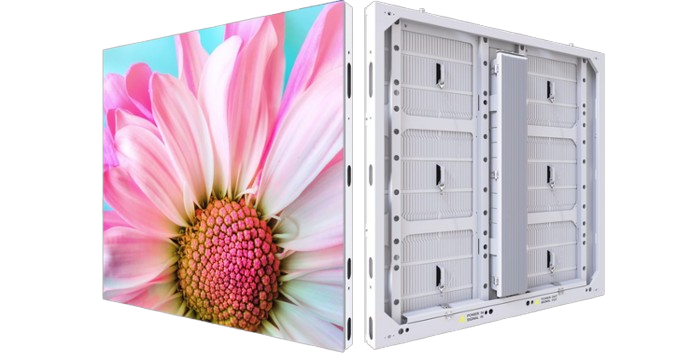

Premium Fanless Outdoor LED with IP66 Protection for Dubai
The SPT Series is StarLED's premium fanless outdoor fixed LED display. Unlike cabinets with internal fans that accumulate dust and fail in Dubai heat, the SPT uses passive heat dissipation for silent, maintenance-free operation. IP66 waterproof protection is one grade higher than IP65, handling powerful water jets and complete dust sealing. Available in five cabinet sizes with P6.67, P8, and P10 pitches. Stocked in Dubai with no import wait.
- Fanless passive cooling — zero noise, zero fan maintenance
- IP66 waterproof — dust-tight, powerful water jet resistance
- 74.3 mm slim depth — direct wall mount, less steel cost

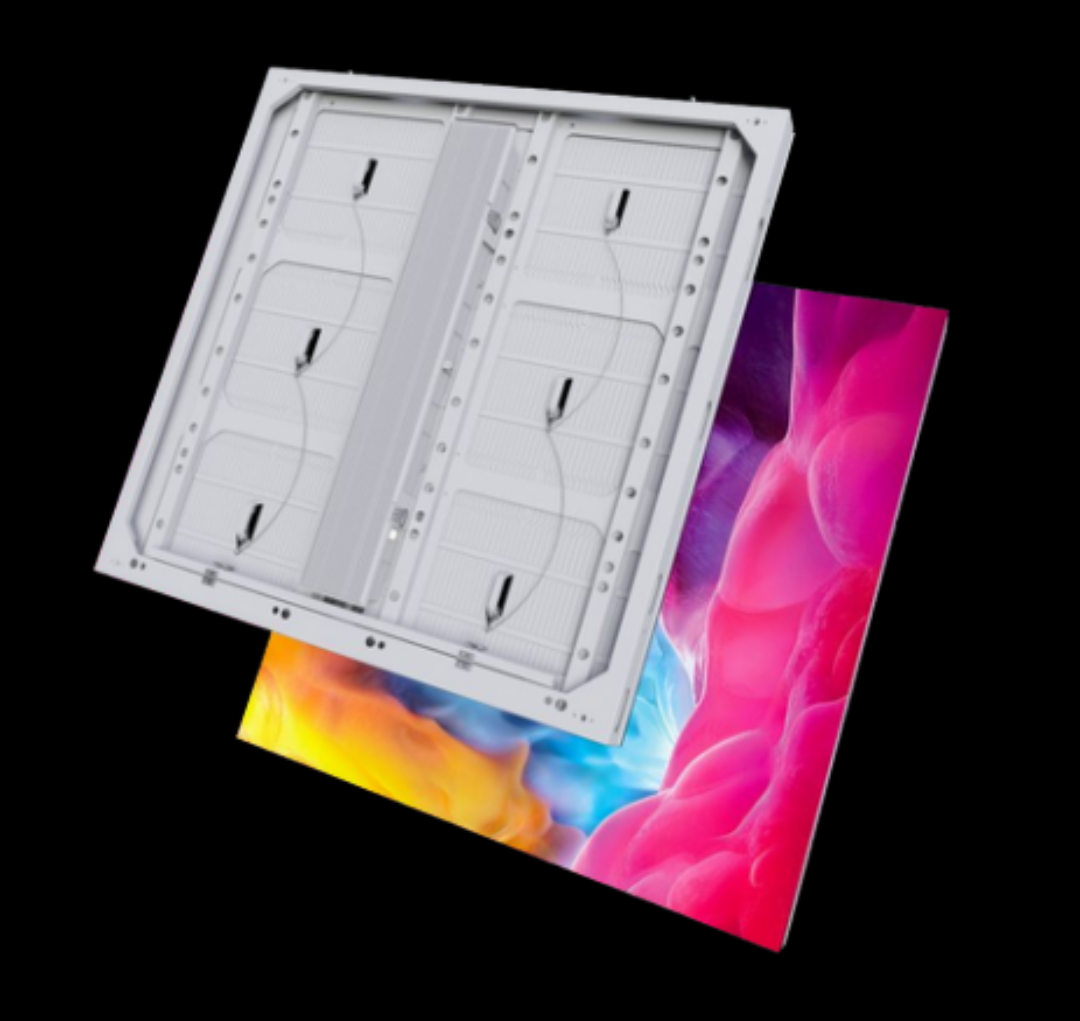

- 6,500 nits at under 205 W/m² average — energy efficient
- 3,840 Hz refresh — flicker-free camera capture
How Fanless Design Cuts Operating Cost on Dubai Outdoor Projects

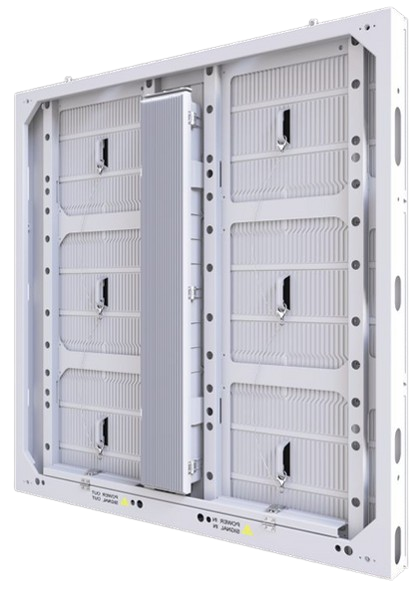

Internal cooling fans are the most common failure point in outdoor LED cabinets. In Dubai heat above 45 degrees, fans run 24/7, accumulate dust, wear out bearings, and fail. The SPT Series eliminates this with passive heat dissipation using the aluminium cabinet as the heat sink. Combined with a low-voltage PCB delivering 6,500 nits at under 205 W/m², auto-calibration, and pixel detection, the SPT minimises total cost of ownership without manual intervention.
- No fans = no noise, no dust buildup, no bearing wear
- Under 205 W/m² average — lower electricity bills at scale
- Auto-calibration and pixel detection — no manual visits
| Factor | SPT | SQ | TQ |
|---|---|---|---|
| Cooling | Fanless | Fan | Fan |
| IP rating | IP66 | IP65/54 | IP65/54 |
| Depth | 74.3 mm | 85 mm | Varies |
| Refresh | 3,840 Hz | 1,920 Hz | 1,920 Hz |
| Avg power | <205 W | 210+ W | Varies |
| Service | Front+Rear | Front+Rear | Rear |
| Auto-cal | Yes | No | No |
| Pitches | 3 | 5 | 13 |
Why Dubai Buyers Specify the SPT Series
The aluminium cabinet acts as the heat sink. No moving parts means zero noise for hotels and retail, zero dust inside the cabinet, and zero fan replacement cost across the full display lifespan.
One grade higher than IP65. Completely dust-tight and resistant to powerful water jets from any direction. Built for rooftop billboards and open plazas fully exposed to Dubai weather.
Low-voltage PCB delivers full outdoor brightness at significantly less power. A 50 sqm billboard running 18 hours daily saves several thousand dirhams per year versus less efficient cabinets.

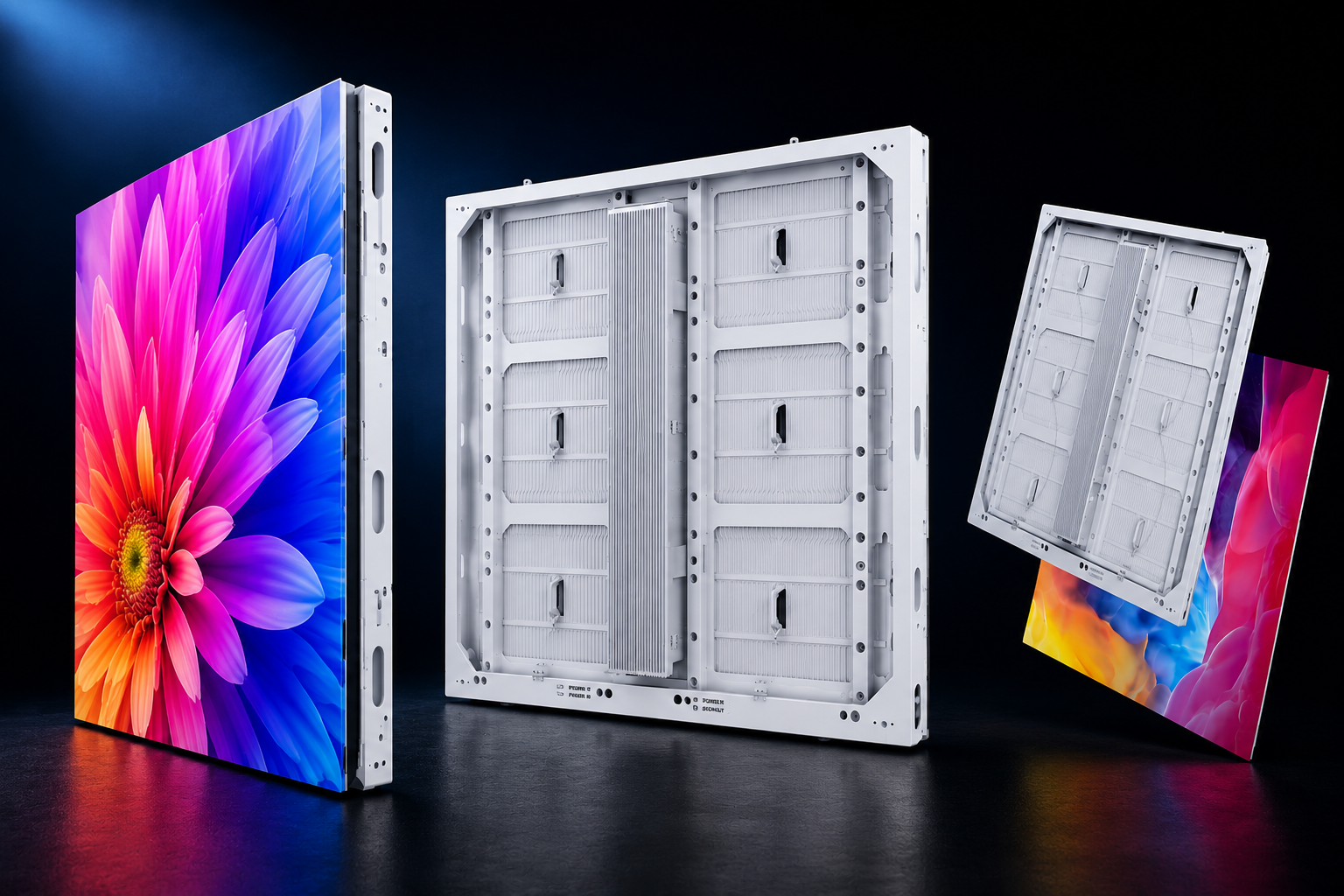

Double the 1,920 Hz standard. No scan lines, flicker, or banding on phone cameras, broadcast equipment, or professional video. Every social media capture looks clean.

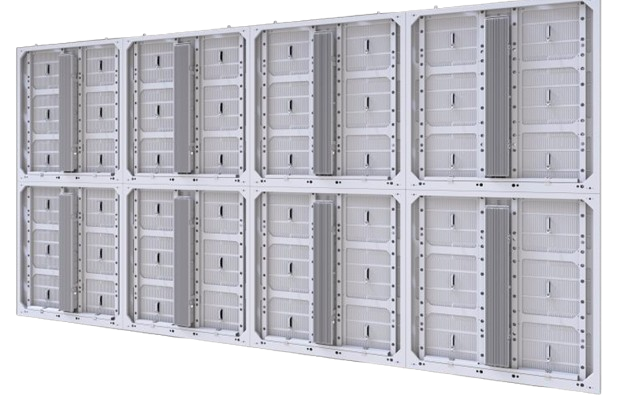

Modules and PSU removable from both sides. No rear corridor needed on tight facades. Front service for quick swaps, rear for batch work. Eliminates deep steel structures.

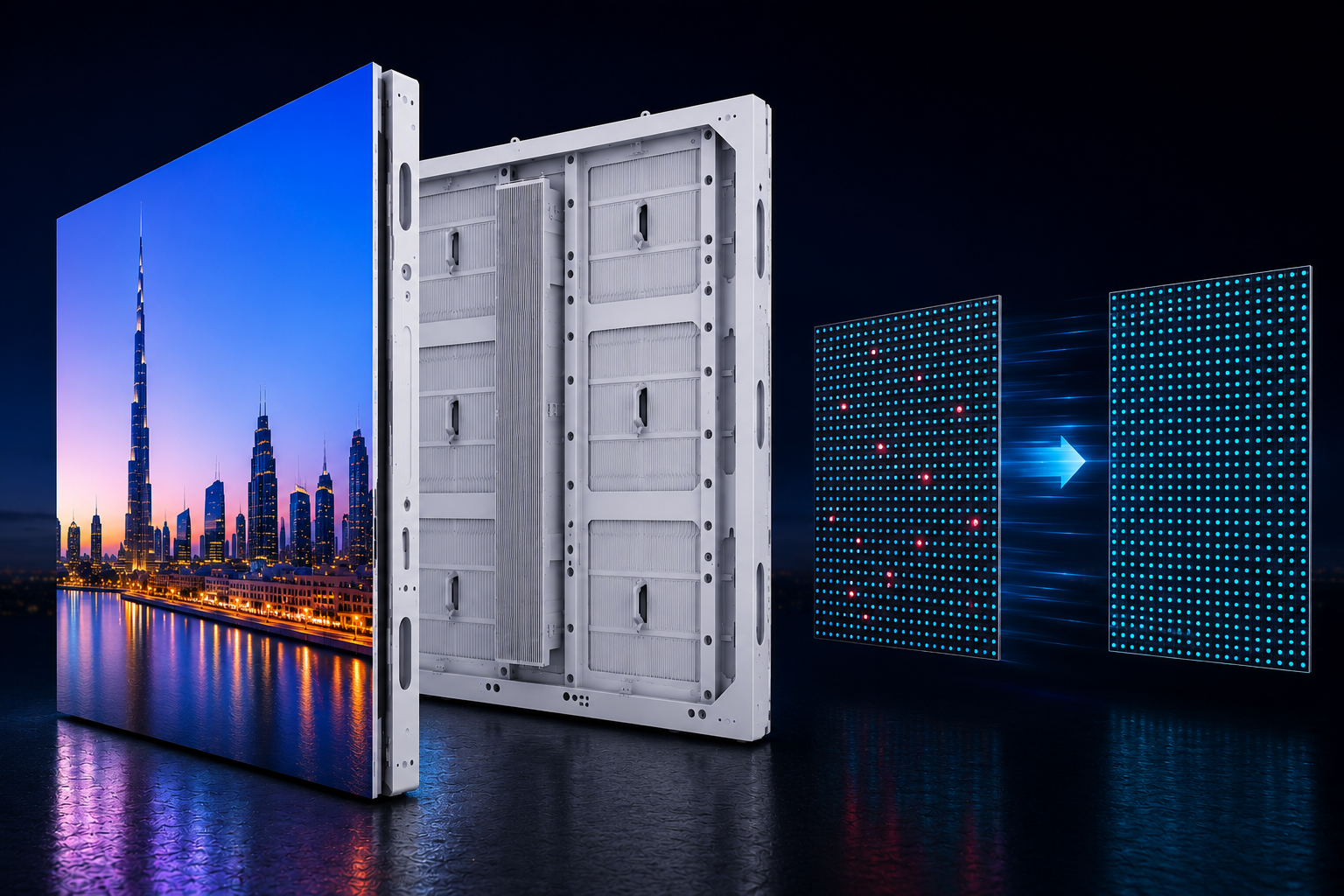

Built-in failure reporting, pixel detection, and auto-calibration maintain quality without manual visits. Brightness and colour uniformity adjusted automatically, 24/7.
SPT Series — Choose Your Pitch
All pitches use 480 × 320 mm modules. Choose based on viewing distance.
- Best forFacades / Plazas
- LED typeSMD2727
- Resolution72 × 48 dots
- Density22,500 px/m²
- Angle180° / 80°
- Best forBillboards / Stadia
- LED typeSMD3535
- Resolution60 × 40 dots
- Density15,625 px/m²
- Angle180° / 90°
- Best forMotorways / Landmarks
- LED typeSMD3535
- Resolution48 × 32 dots
- Density10,000 px/m²
- Angle180° / 90°
SPT Series Technical Specifications
| Specification | Value |
|---|---|
| Cabinet Material | Aluminium |
| Cabinet Sizes (W × H mm) | 960×1280 / 960×960 / 1440×960 / 960×640 / 1440×640 |
| Cabinet Depth | 74.3 mm |
| Cabinet Weight | 28 kg/m² |
| Pixel Pitches | P6.67 / P8 / P10 |
| LED Type | SMD2727 (P6.67) / SMD3535 (P8, P10) |
| Module Size | 480 × 320 mm |
| Brightness | 5,500 to 6,500 nits |
| Refresh Rate | 3,840 Hz |
| Grey Scale | 14 to 16 bit |
| Viewing Angle (H/V) | 180/80 (P6.67) / 180/90 (P8, P10) |
| IP Rating | IP66 |
| Cooling | Fanless passive |
| Service Access | Front + Rear (modules + PSU) |
| Max Power | Under 680 W/m² |
| Average Power | Under 205 W/m² |
| Input Voltage | AC 110 to 220 V |
| Operating Temperature | -30°C to +55°C |
| Smart Features | Failure report, pixel detection, auto-cal |
| Certifications | CE, RoHS |
Watch the SPT Series In Action
Real installation footage from a recent StarLED SPT Series project in the UAE. See the slim 74.3 mm cabinet mount directly to the facade — silent, fanless, fully sealed.
SPT Series Applications Across Dubai

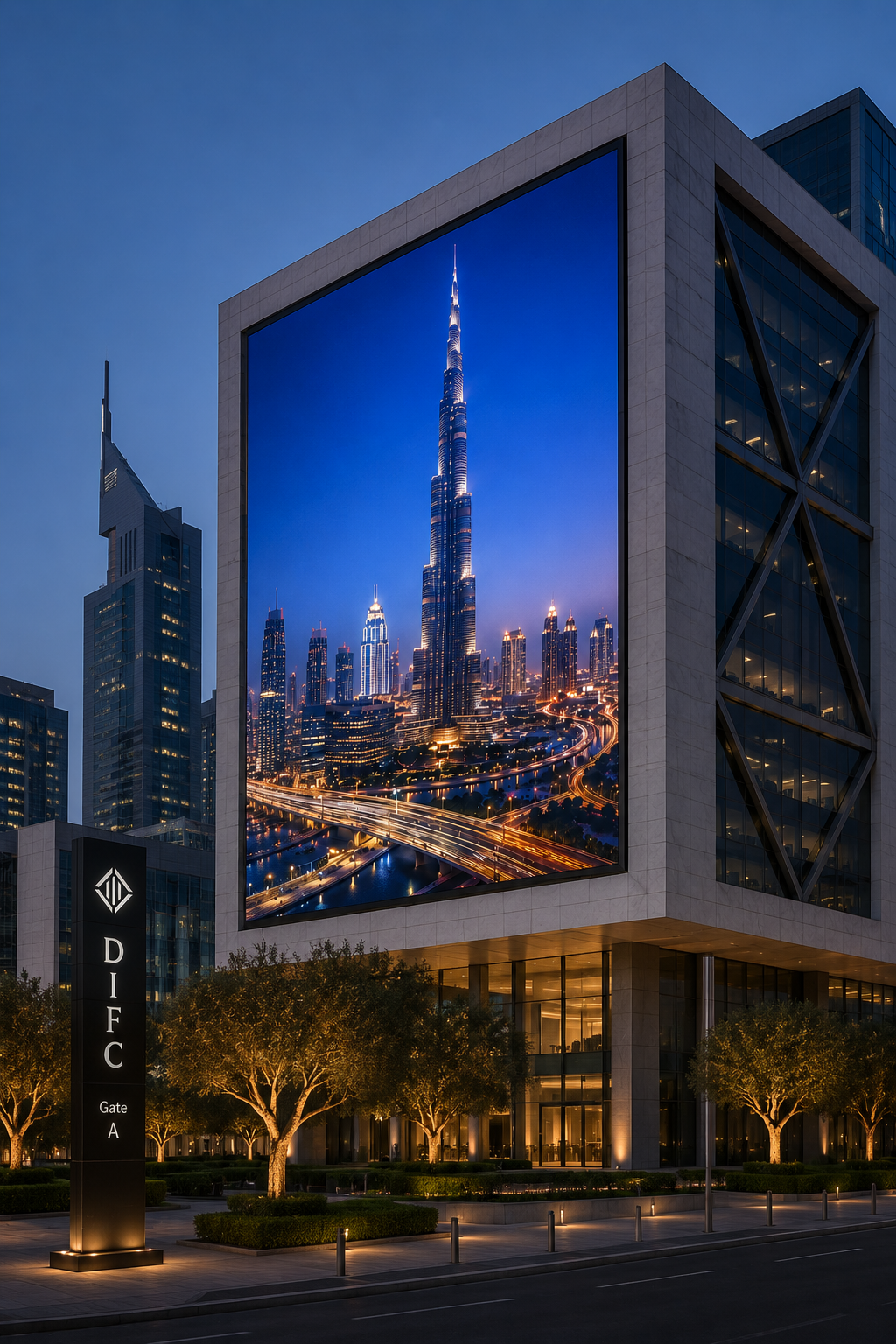

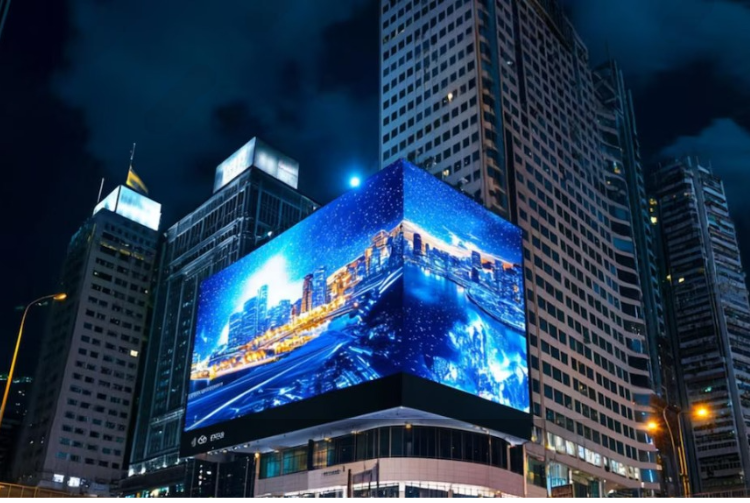

Fanless silent operation for office environments. 74.3 mm sits flush against the wall. IP66 handles full exposure. Front service means no disruption to mounting.

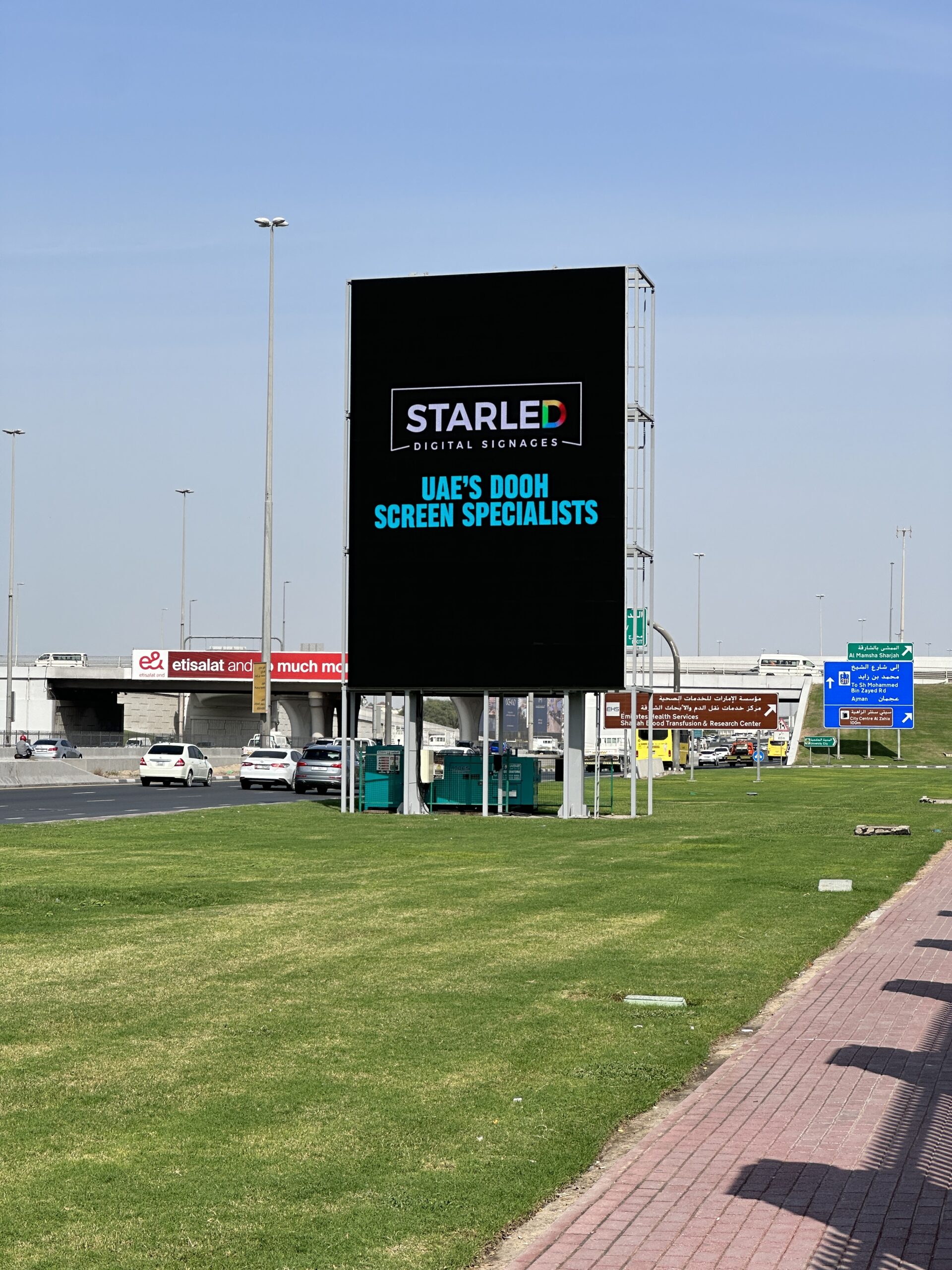

6,500 nits at under 205 W/m² cuts monthly electricity. IP66 for full weather exposure. Auto-calibration maintains colour without manual visits.
3,840 Hz ensures clean social media captures. Fanless = zero noise at customer entrances. Five cabinet sizes match any facade opening.

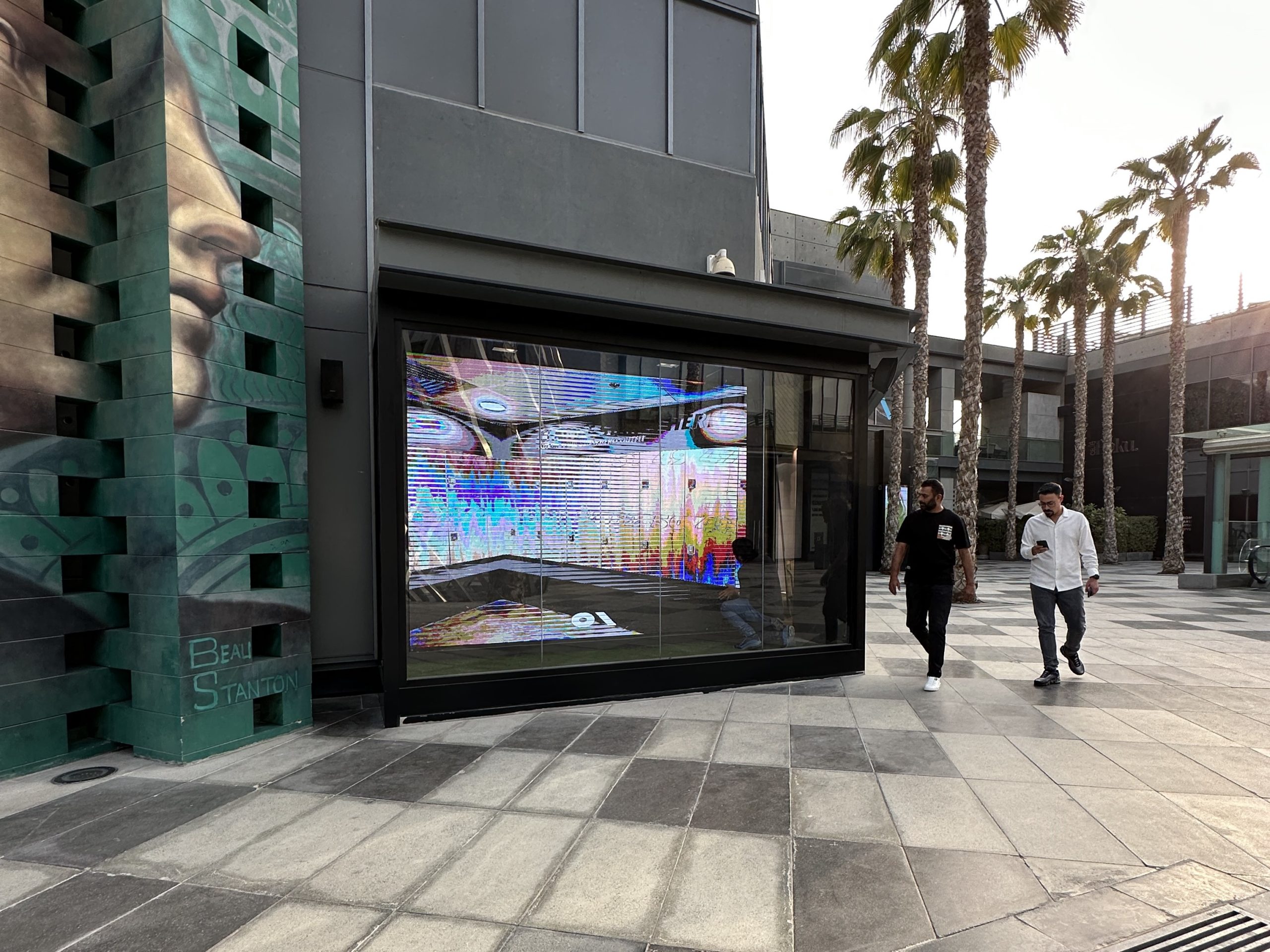

Silent fanless operation where guest comfort is paramount. Slim 74.3 mm integrates with premium facade design. IP66 handles beachfront humidity.

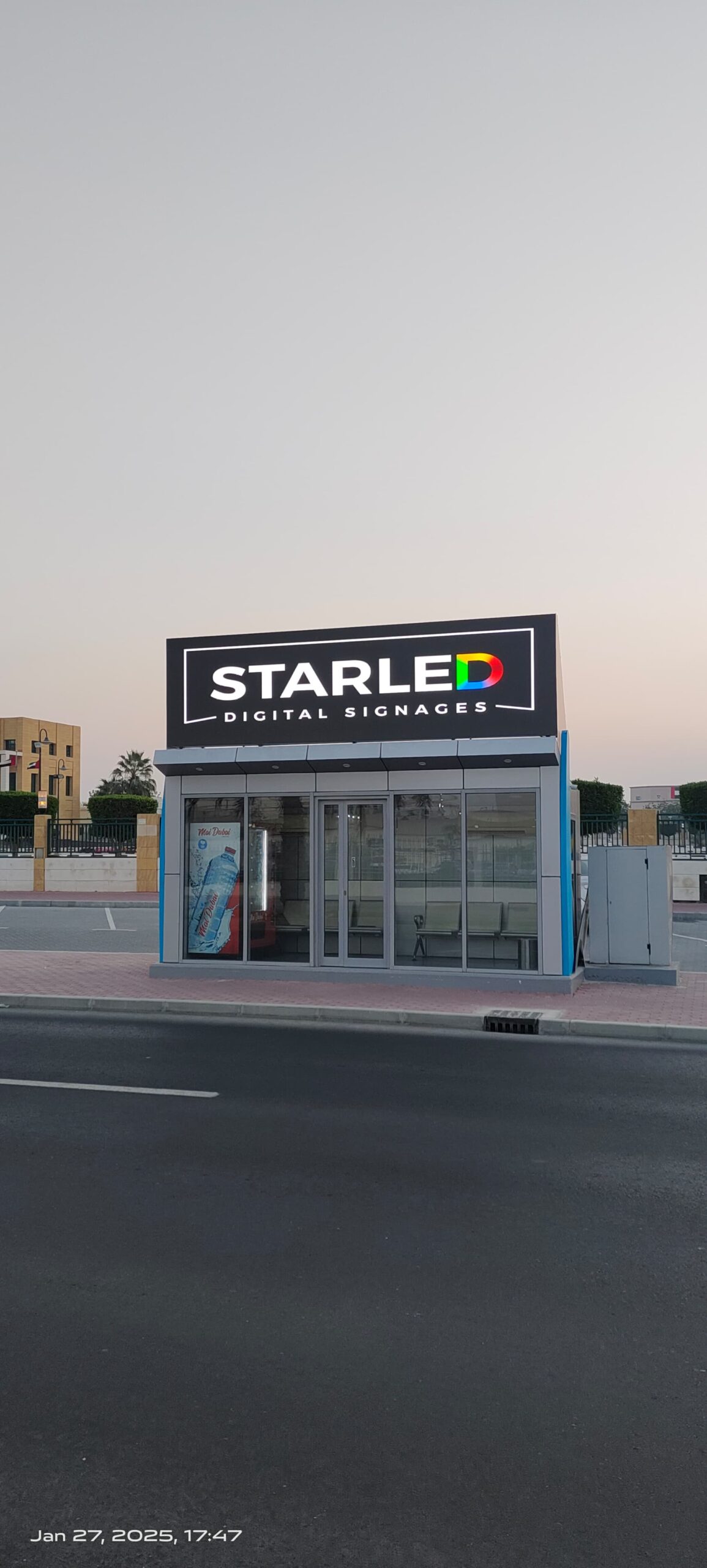

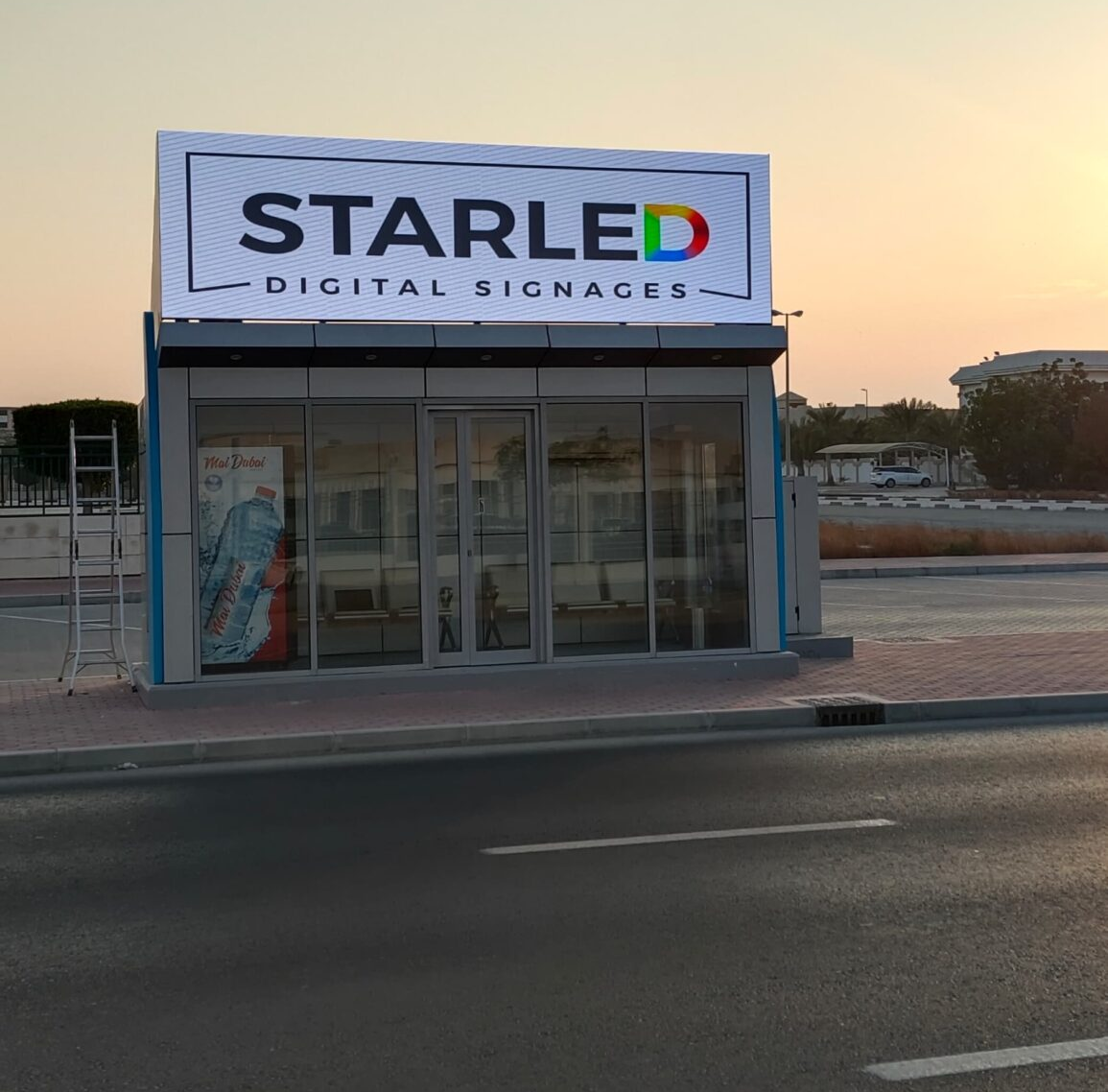

IP66 for uncovered platforms. Pixel detection keeps info visible 24/7. Energy-efficient operation reduces infrastructure electricity budgets.
3,840 Hz for broadcast-clean capture. IP66 for open-air stadiums. Five cabinet sizes match venue dimensions. Fanless eliminates exposed-venue failures.

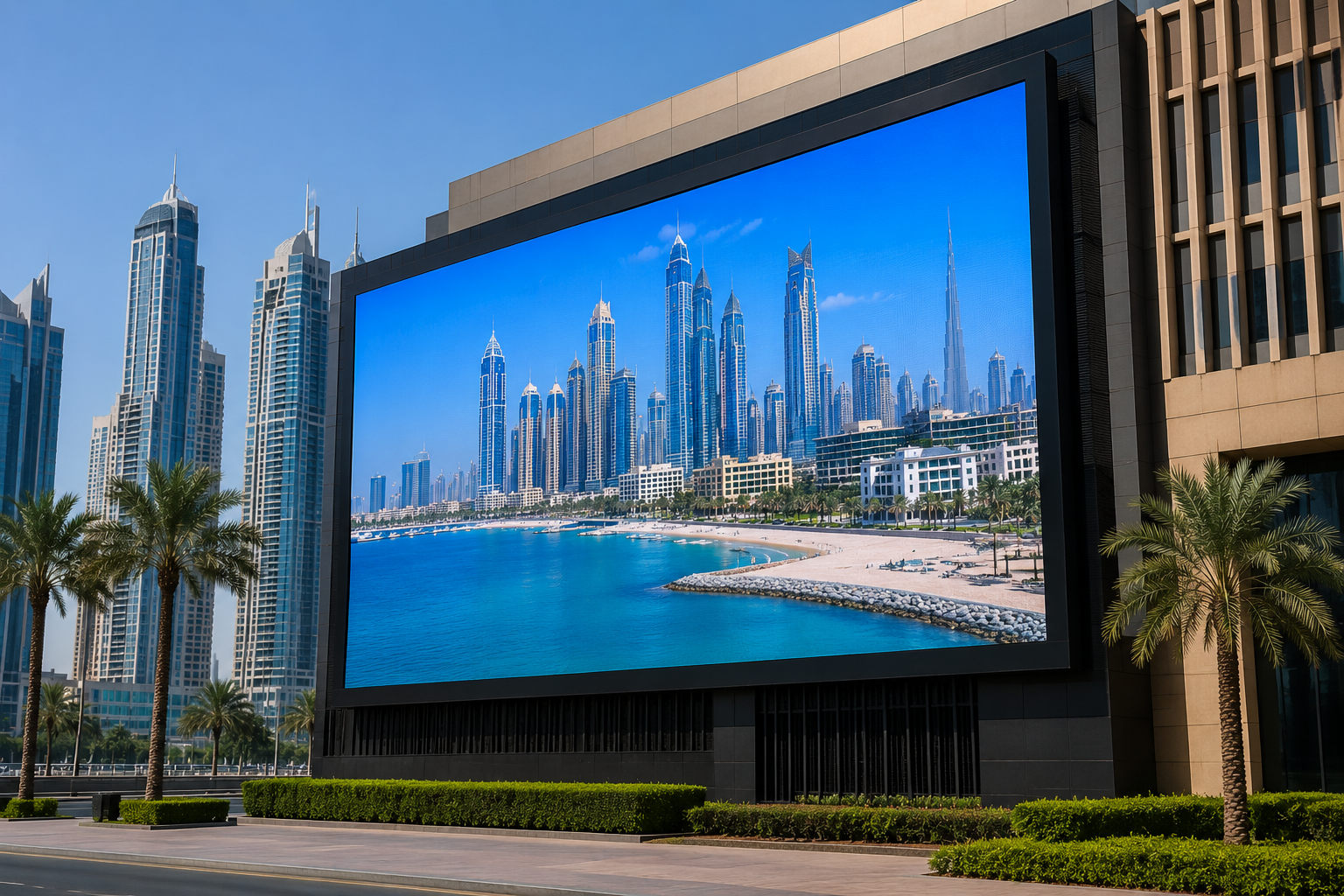

SPT Series Installations
Every project below was specified, supplied, and installed by StarLED's in-house Dubai team.
Compare Outdoor LED Options
StarLED's flagship outdoor cabinet. Widest pitch range and IP67 protection for permanent fixed installations.
Slim 85 mm cabinet with corner and curved install support. Finer pitches from P3.9 with four cabinet sizes.
Browse every StarLED outdoor platform before finalising your specification.
Why Choose StarLED for SPT Series in Dubai?
SPT cabinets stocked at Al Khawaneej 2. No import wait. Bring a competitor quote and we will beat it.
Site survey, structural assessment, Municipality permits, install, commissioning, and CMS handover. All in-house.
Full documentation, IP66 test reports, and structural weight figures for Dubai Municipality permit applications.
Replacement stock held locally. Fanless = no fan replacements. Front service = fast warranty visits.
Ready to Work Together? Transform your business with us!
We challenge any UAE-based price. Seen a lower quote?
Show us, we’ll beat it. You don’t need to go to China. We’ve already brought the factory to you.
Come See It in Action
Want to see the quality before you decide? Visit our Dubai facility and experience a live demo.
Why book with us?
- Ready stock in Dubai & UAE for faster delivery
- In-house engineers for installation & setup
- Transparent pricing, no hidden costs
- Full after-sales support and warranty
Frequently Asked Questions
Common questions from Dubai buyers specifying the SPT Series outdoor LED display for the first time.
