Lightweight Outdoor LED Cabinet Built from Magnesium Alloy
The Magnesium Series is StarLED's outdoor LED display built on a die-cast magnesium alloy cabinet measuring 960 × 960 mm. Magnesium alloy is 20 to 30% lighter than aluminium at equivalent structural thickness while delivering superior heat dissipation. For Dubai large-format installations where rigging weight, crane capacity, and transport cost are significant budget items, this weight reduction directly reduces project cost.
Compatible with six outdoor pixel pitches from P3 to P10 using 320 × 160 mm modules in a 3 × 6 arrangement per cabinet. Built-in protection covers overheat, overload, leakage, over-current, over-voltage, and lightning-proof protection. Stocked in Dubai with no import lead time.
- 20 to 30% lighter than aluminium — lower crane and rigging costs
- 12.9 kg frame / 29.7 kg complete per cabinet
- Superior heat dissipation for Dubai's 40°C ambient
- Less than 0.6 mm flatness — seamless joins on large screens
- 6 pitches P3-P10 — one cabinet for every outdoor scale
How Magnesium Reduces Dubai Outdoor LED Project Costs
For projects measuring 30 m² or more, the choice between magnesium and aluminium has a direct effect on three cost lines. First, crane and rigging: a 50 m² display from Magnesium Series cabinets weighs hundreds of kilograms less, which can eliminate the need for a heavy-lift crane. Second, transport: more units per vehicle at 29.7 kg. Third, heat management: magnesium's higher thermal conductivity reduces brightness throttling during Dubai's peak summer operation.
- 8 built-in protection circuits as standard
- Hinge-access rear panel — service without dismantling
- Lock mechanism prevents unauthorized access on public sites
- Video sync and real-time display control across all cabinets
| Factor | Magnesium | Aluminium |
|---|---|---|
| Material | Mg alloy die-cast | Al die-cast |
| Weight | 20-30% lighter | Baseline |
| Frame weight | 12.9 kg | 18-22 kg typical |
| Heat dissipation | Superior | Good |
| Rigging load | Lower crane cost | Higher load |
| Flatness | <0.6 mm | Varies |
| Protection | 8 circuits | Varies |
| Panel access | Hinge + lock | Varies |
Need a datasheet, rigging calculation, or same-day AED quote?
StarLED Dubai responds within 2 hours. Magnesium cabinets stocked locally.
Why Dubai Buyers Specify the Magnesium Series

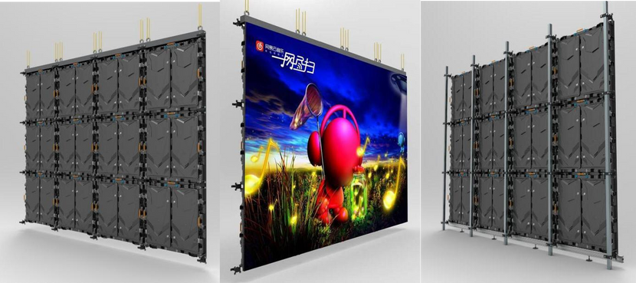

12.9 kg frame vs 18-22 kg aluminium. On a 50 m² installation across 57 cabinets, the weight saving determines crane category and reduces project cost.
Magnesium conducts heat faster than aluminium. Reduces thermal stress on LEDs in Dubai's 40°C ambient. Maintains brightness consistency through summer.

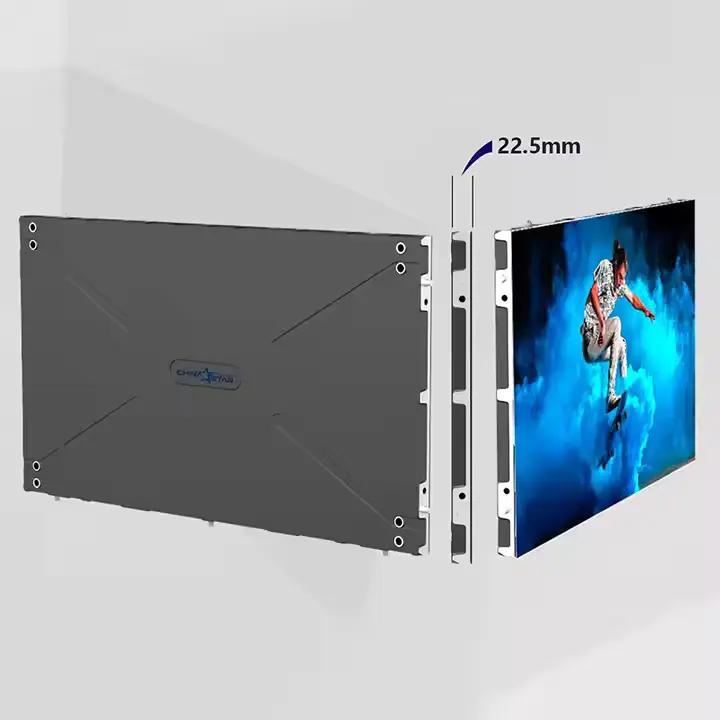

Less than 0.6 mm tolerance across the full 960 × 960 mm face. 57 cabinets present a uniformly flat display surface with no visible seams.

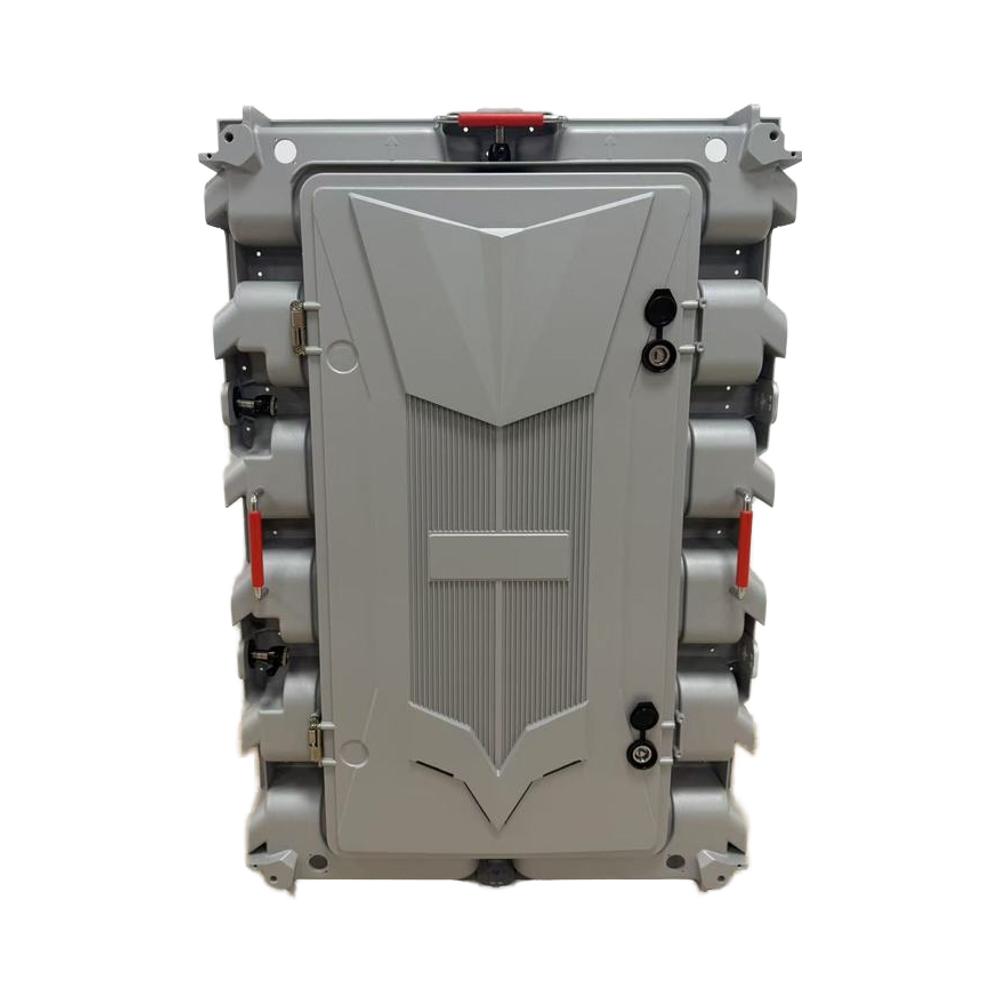

Overheat, overload, leakage, over-current, over-voltage, lightning-proof. Autonomous fault response on unattended Dubai outdoor installations.

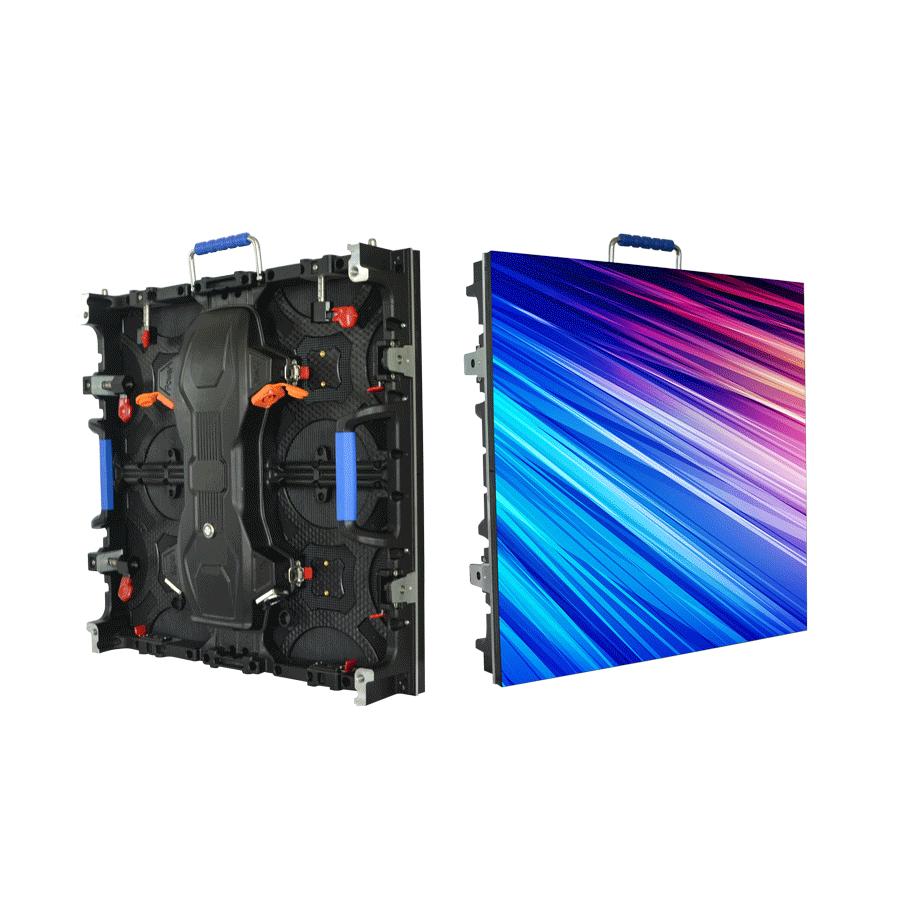

Hinge-access rear panel for fast module service. Lock prevents unauthorized opening on public outdoor sites. Faster service than bolted-rear cabinets.

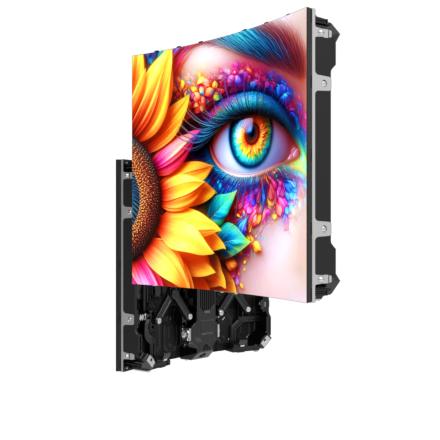

Content changes propagate simultaneously to all cabinets. No visible lag between panels. For multi-screen advertising networks across Dubai properties.
Choose Your Pixel Pitch Configuration
All pitches share the 960 × 960 mm cabinet with 320 × 160 mm modules in a 3 × 6 arrangement. Choose based on viewing distance.
Magnesium Series Specifications
| Specification | Value |
|---|---|
| Cabinet Material | Magnesium Alloy |
| Cabinet Size | 960 × 960 × 104.5 mm (with module) |
| Cabinet Area | 0.9216 m² |
| Frame Weight | 12.9 kg |
| Complete Weight | 29.7 kg per cabinet |
| Flatness | Less than 0.6 mm |
| Module Size | 320 × 160 mm |
| Modules Per Cabinet | 3 × 6 = 18 modules |
| LED Config | 1R1G1B (full colour) |
| Pitches | P3 / P4 / P5 / P6.66 / P8 / P10 |
| Power Config | 4.5V / 80A |
| Cabinet Access | Hinge + lock rear panel |
| Protection | 8 circuits incl. lightning-proof |
| Max Hoist | 15 cabinets |
| Operating Temp | -20 to 40°C |
| Humidity | 10-90% RH |
Module specs (brightness, refresh, IP, greyscale) depend on pitch selected. Request full spec sheet with module parameters.
Watch the Magnesium Series Installation in Dubai
From cabinet unloading to rigging, alignment, and commissioning. StarLED's in-house team handles every Magnesium Series install across the UAE — captured on-site.
Magnesium Series Applications Across the UAE
50 m² from 57 cabinets at 29.7 kg each. Lower total load means lighter structural steel and lower project cost.

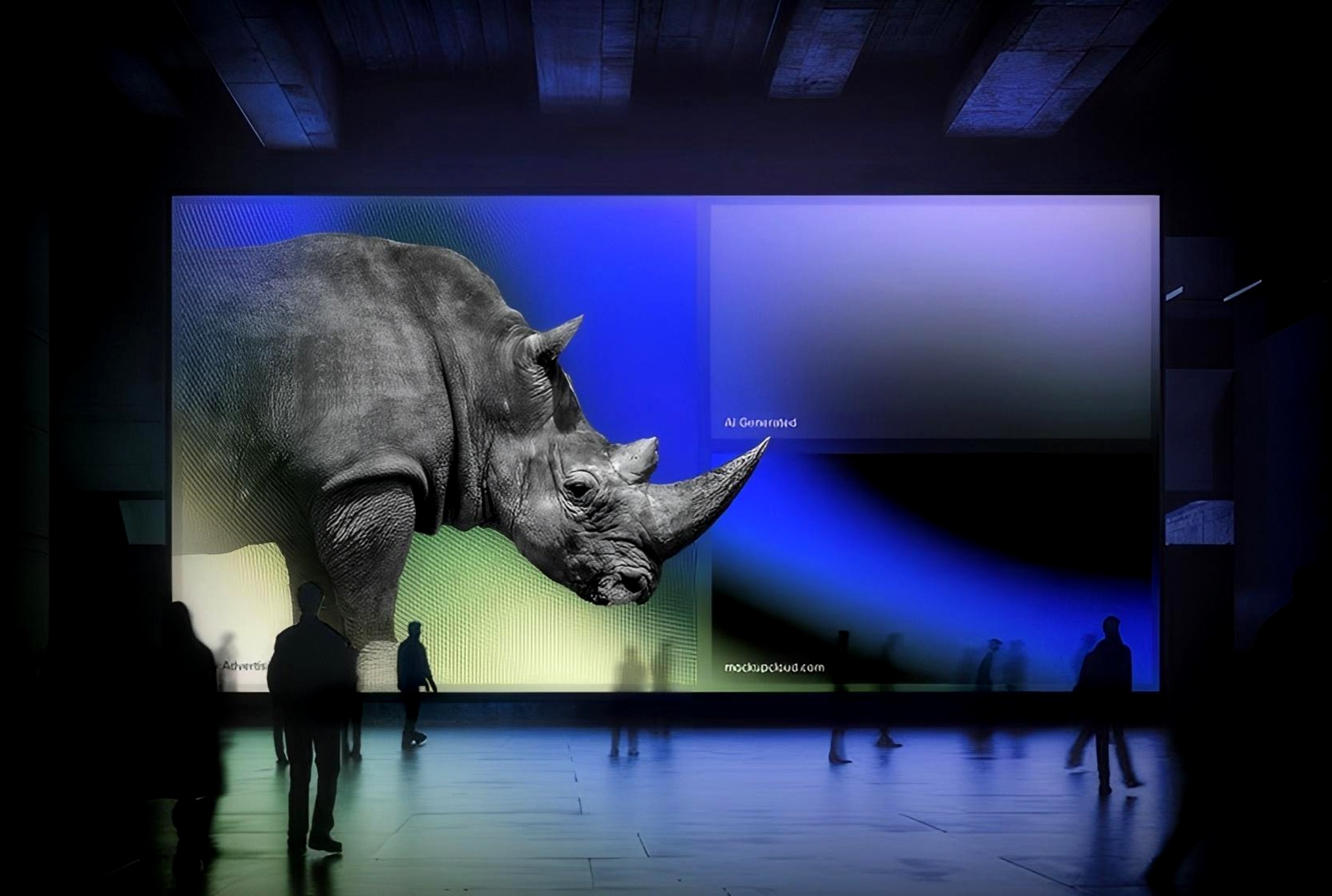

Lighter cabinets reduce rigging equipment, labour hours, and transport vehicles for each event build and de-rig.

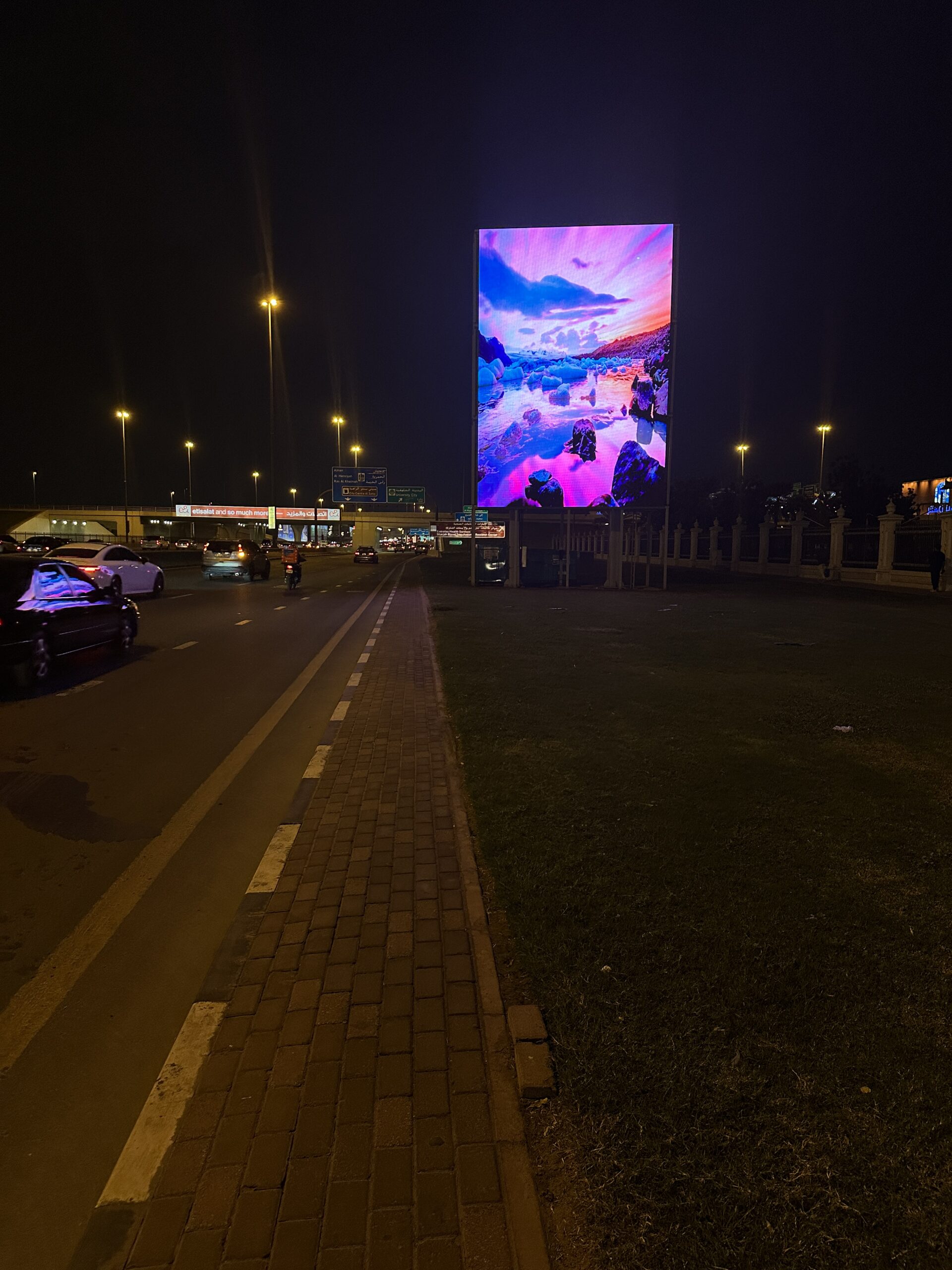

Lower per-cabinet weight reduces building facade loading. Simplifies Dubai Municipality structural permit submission.
12.9 kg frame fits structures with defined load limits. Hotel canopies, covered walkways, overhead structures.
Lighter mounting structure. Faster install/removal between event seasons. Lightning-proof option for exposed locations.

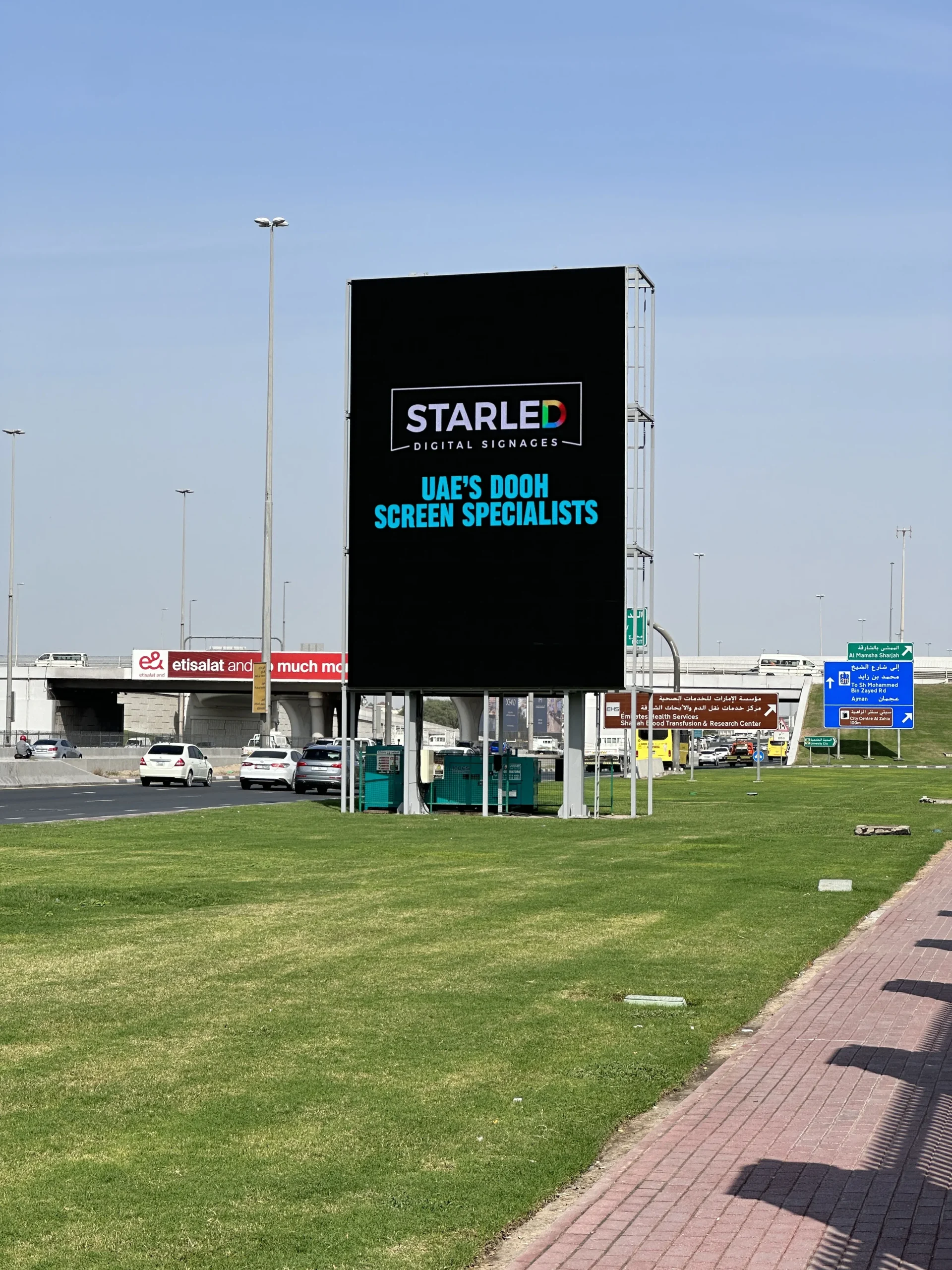

Lower dead load reduces billboard pole and foundation steel specification. Lower total civil cost of the advertising structure.

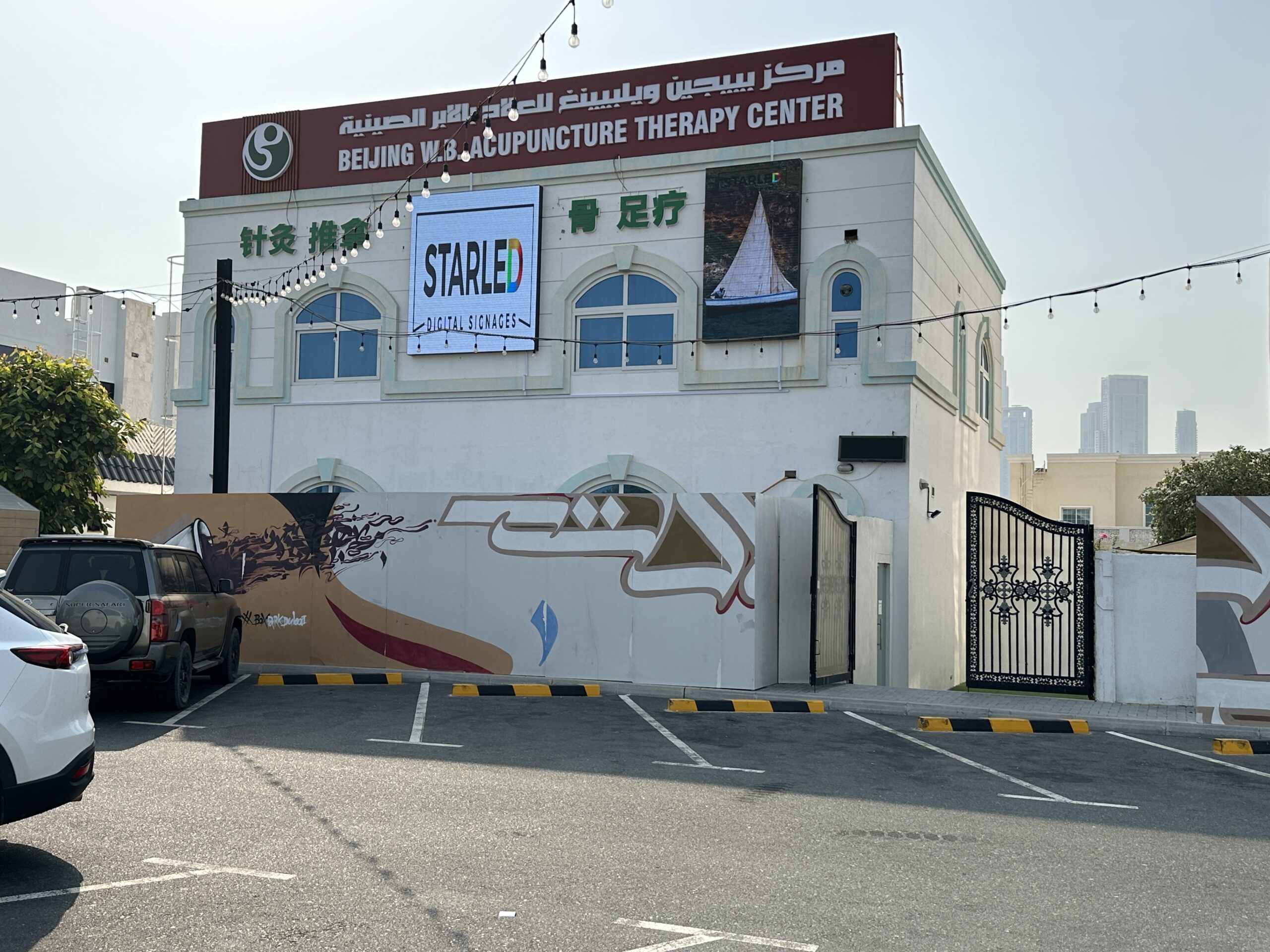

Magnesium Series Installations
Every project specified, supplied, and installed by StarLED's in-house Dubai team.
About StarLED — Your Dubai LED Supplier
Magnesium cabinets at Al Khawaneej 2. Delivered and installed within a week. Bring a comparable quote and we'll beat it.
Site survey, structural load assessment, Municipality permit docs, install, commissioning, CMS handover. All in-house.
Full spec documentation and structural weight figures for Dubai Municipality outdoor advertising permit applications.
On-site across Dubai and Abu Dhabi. Replacement cabinets held locally. Hinge-access means fast service without full removal.
Sealed Surface.
Zero Compromises.
Flip-Chip COB LED displays for Dubai's premium commercial spaces. IP65 sealed, front-service, stocked in Dubai and installed by StarLED's in-house UAE team.

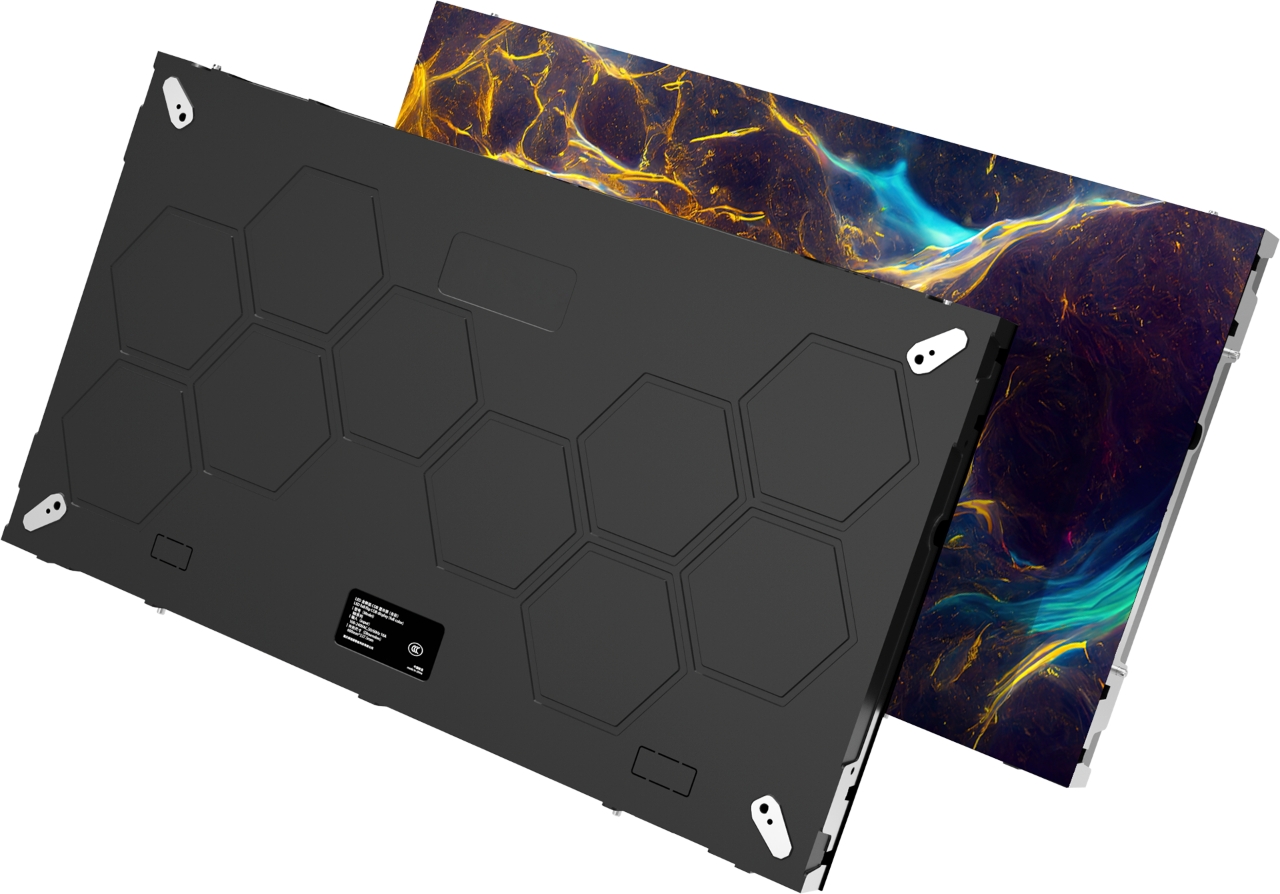

COB LED Video Wall
Paste your hero image URL above
What Makes COB LED Different?
In standard SMD displays, each LED sits inside a raised plastic housing. In COB, the chips bond directly to the PCB and seal under epoxy resin. The result is a completely flat, seamless, washable surface with no exposed parts to break or collect dust.
- ✓Flat sealed surface - safe to wipe clean
- ✓IP65 module surface - dust, moisture, impact resistant
- ✓170 degree viewing angle - consistent from any position
- ✓Flip-Chip bonding - lower power, longer life
Put to the Toughest Test
COB LED's epoxy-sealed surface survives what would destroy any standard SMD display. We tested it with direct impact, water spray, abrasive cleaning, and continuous pressure. Watch the result.
6 Reasons Dubai Businesses Choose COB
Epoxy-encapsulated face. Dust-proof, moisture-resistant, safe to wipe clean without risking pixel damage. Critical for high-traffic Dubai retail and hospitality venues.
Deeper blacks and brighter whites than any SMD equivalent. COB's flat sealed surface eliminates internal light scatter for stunning visual depth.
No rolling shutter or moire when filmed. Essential for retail environments photographed by customers and broadcast studios where every frame matters.
Consistent colour and brightness from almost any position. No hot-spots. No colour shift. Every seat in the room sees the same image quality.

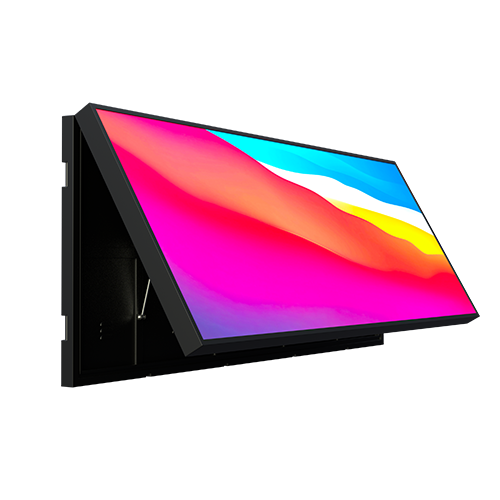

![Front Service COB LED Display](https://starleddisplay.com/wp-content/uploads/2026/04/6265e2474efc8.png")
All maintenance from the front. Your wall finish stays intact. Service is fast, minimally disruptive, and requires no structural access from behind.
No wire bonds means lower power draw, better heat transfer, and longer LED lifespan. Direct chip-to-substrate connection reduces energy use and running costs.
Which Pixel Pitch for Your Space?
The closer your audience stands, the smaller the pitch needed. Our Dubai team specifies the exact pitch for your space at no charge.
- Control Rooms
- Boardrooms
- Luxury Retail
- Broadcast Studios
- Hotel Lobbies
- Meeting Rooms
- Showrooms
- Government Offices
- Conference Halls
- Smart Campuses
- Retail Atria
- Training Rooms
- Auditoriums
- Reception Areas
- MOC Venues
- Large Showrooms
Technical Specifications
| Specification | Value |
|---|---|
| LED Technology | Full Flip-Chip COB |
| Pixel Pitches | P0.9 / P1.25 / P1.5 / P1.56 / P1.8 |
| Cabinet Size (W x H) | 600 x 337.5 mm, 16:9 ratio |
| Cabinet Depth | 33.6 to 35 mm |
| Cabinet Weight | 4.6 to 4.7 kg per cabinet |
| Cabinet Material | Die-cast Aluminium (CNC precision) |
| Brightness | 600 to 1000 nits (adjustable) |
| Refresh Rate | 3840 Hz to 7680 Hz |
| Grayscale Depth | 13 to 16 bit |
| Contrast Ratio | Up to 100,000:1 |
| Viewing Angle (H/V) | 160 to 170 degrees |
| IP Rating | IP54 (COB PRO) / IP65 (NX COB, module surface) |
| Operating Temp | -10 to 45 C (COB PRO to 60 C) |
| Input Voltage | AC 100 to 240 V, 50/60 Hz |
| Service Access | Front only |
| LED Lifespan | 100,000 hours (typical) |
| Certifications | CE, CB |
See How These Screens Take Shape
From raw PCB substrates to sealed, tested, and calibrated COB LED cabinets. Every step happens under controlled factory conditions before it reaches our Dubai warehouse.
Where COB LED Performs Best
Seamless video wall that makes campaign visuals look exactly as the brand intended. High contrast, no visible pixel structure at 1 metre.

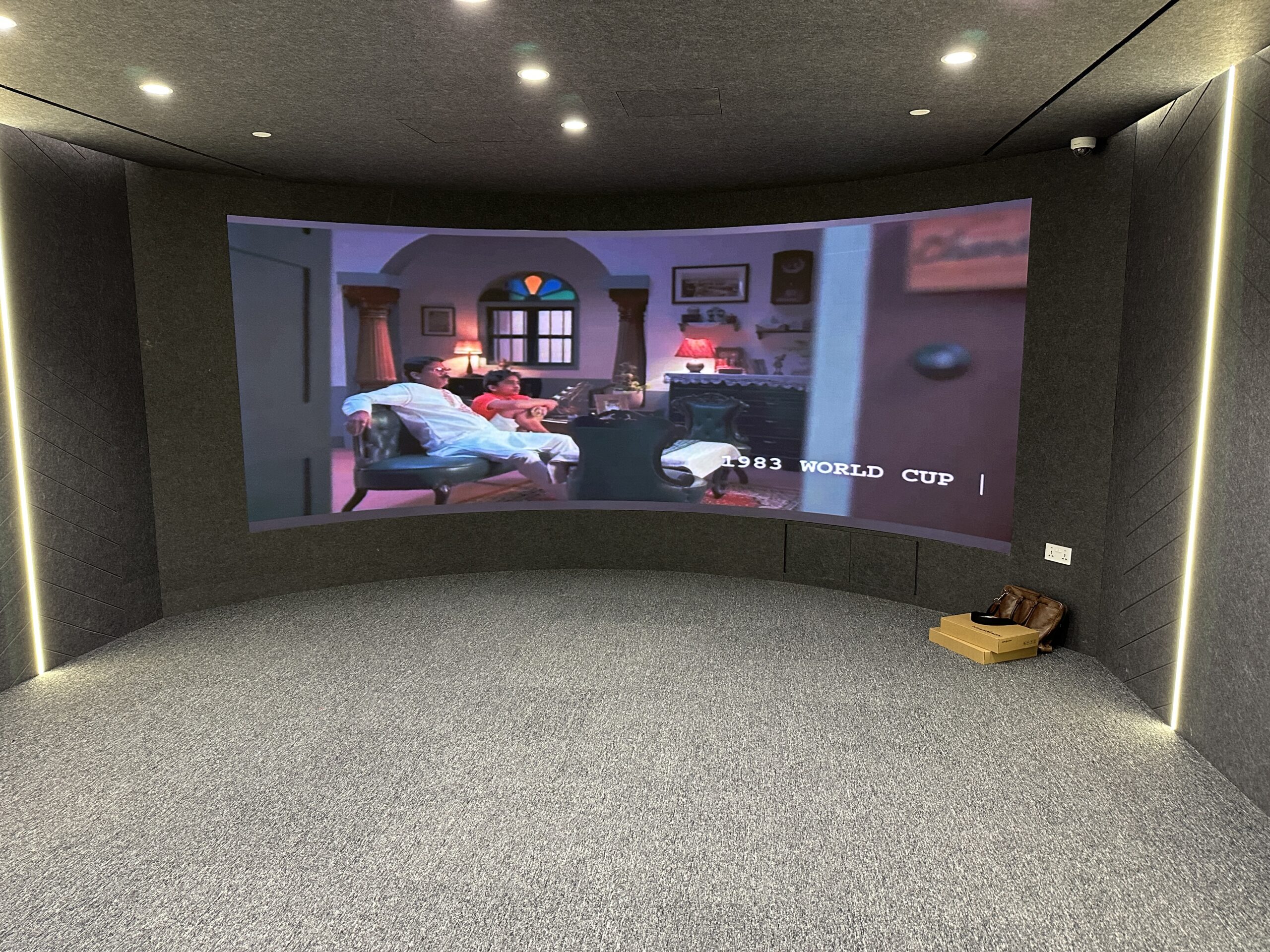

Adjustable colour temperature matches warm lobby lighting. IP65 surface survives housekeeping. Runs 24 hours without maintenance concerns.
4K content at P1.25 viewed from 2 metres. No visible pixel structure. Dual power supply ensures zero downtime during presentations.
16-bit grayscale. Up to 7680 Hz refresh. No eye fatigue during 12-hour shifts. Critical alerts are unmistakable.
160 degree angle means no bad seat in a 200-person lecture hall. Front-service requires no wall damage. Built to outlast a fit-out cycle.

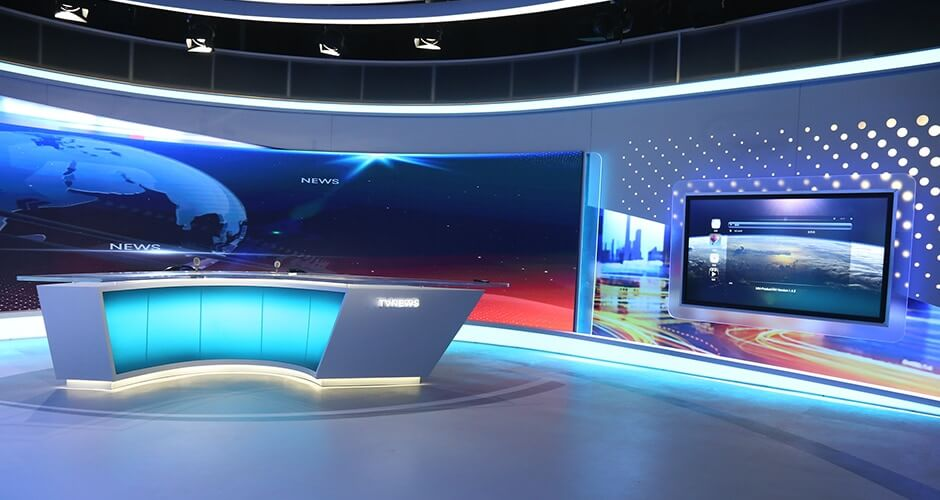

Camera-ready. 3840 Hz eliminates rolling shutter and moire. Permanent backdrop, live set, or XR stage - broadcast-grade by specification.
COB LED Projects in the UAE
Every installation was specified, supplied, and completed by StarLED's in-house Dubai team.
Explore the Full COB LED Range

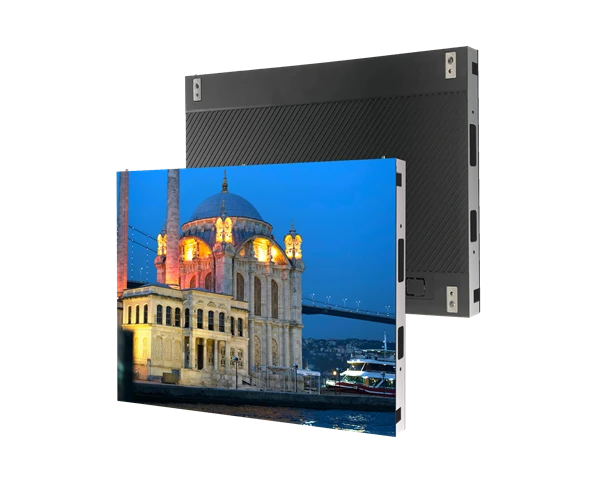

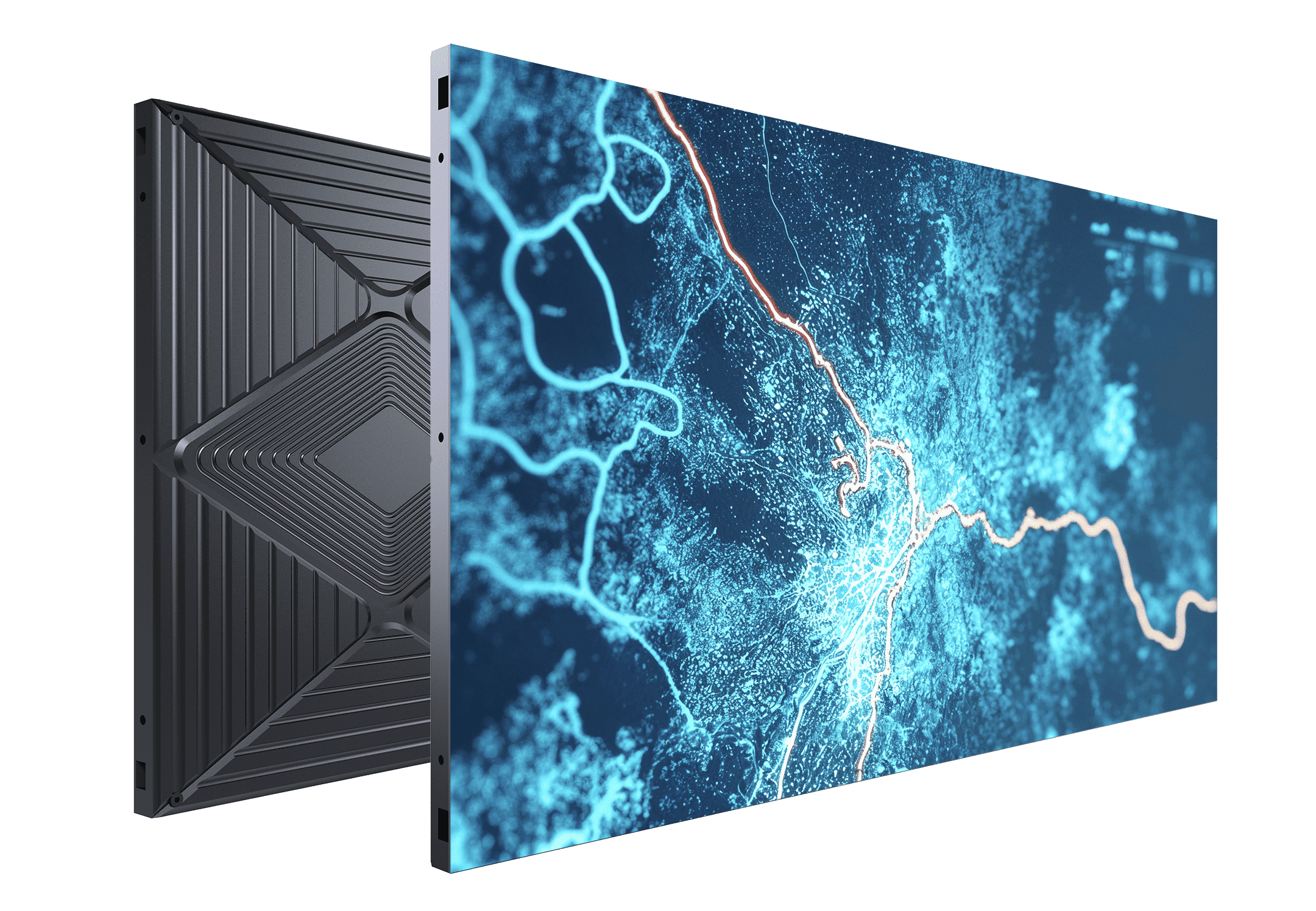

16:9 golden ratio cabinet. 3840 Hz refresh. IP65 module surface. Common cathode drive. The benchmark indoor COB choice.
View NX Series COB →Top-tier flip-chip COB. Up to 7680 Hz refresh. IP54. Dual power supply for zero-downtime. For broadcast, control rooms, and luxury commercial.
View COB PRO →Cost-effective, full front-service COB. 100,000-hour lifespan. 16:9 ratio. CE and CB certified. Accessible entry point into COB LED technology.
View NX COB →Why Choose StarLED for COB LED in Dubai?
Over 2,000 m2 at Al Khawaneej 2. Most COB projects delivered and installed within days of sign-off.
We don't subcontract. Certified technicians handle every COB installation. We have the tools for COB flatness tolerances.
Callouts within 24 hours. No return-to-factory. Spare modules for every active product held in our Dubai warehouse.
Site visit, environment assessment, and written spec recommendation with supporting data. Pixel pitch, cabinet count, structural requirements. No charge.
