Dubai's Most Widely Used Indoor LED Technology
SMD (Surface-Mount Device) LED is the standard choice for indoor commercial video walls in Dubai. Individual red, green, and blue LEDs are pre-packaged in a sealed casing and soldered onto a PCB. Cost-effective, widely available from P2 to P6, and straightforward to service. The practical starting point for any commercial display project where viewing distances are 2 to 15 metres and budget efficiency matters alongside image quality.
- Any screen size from 2 m² to 100 m² video wall
- 2-day install across Dubai by StarLED's in-house team
- Dubai stock — most projects delivered within 48 hours
- Front or rear service — minimal disruption during maintenance
The Technology Behind Dubai's Most Installed Indoor Display
SMD mounts pre-packaged LED components onto PCBs using automated surface-mount assembly. Because SMD LEDs are manufactured in massive volumes, the technology is mature, cost-optimised, and widely serviced. The trade-off vs COB is surface exposure: SMD lenses sit slightly proud, making them less suited to direct touch or regular cleaning. For wall-mounted or behind-glass installations, SMD is the right technology. For hotel lobbies or luxury retail, COB offers a sealed alternative.
- Widest pitch range: P2 to P6 in a single platform
- Most cost-effective indoor LED per square metre
- Field-replaceable modules keep lifetime service costs low
- Best for 2 m+ viewing in typical commercial spaces
| Factor | SMD LED | COB LED |
|---|---|---|
| Price per m² | Lower | Higher |
| Pitch range | P2 to P6 | P0.9 to P1.8 |
| Surface | Standard | IP65 sealed |
| Viewing distance | 2 m+ | 1 m+ |
| Touch / clean safe | No | Yes |
| Contrast | 5000:1 | 10,000:1+ |
| Applications | Retail, events, corporate | Luxury, hospitality |
| Dubai stock | Same day | 1–2 days |
Why Dubai Businesses Choose SMD LED

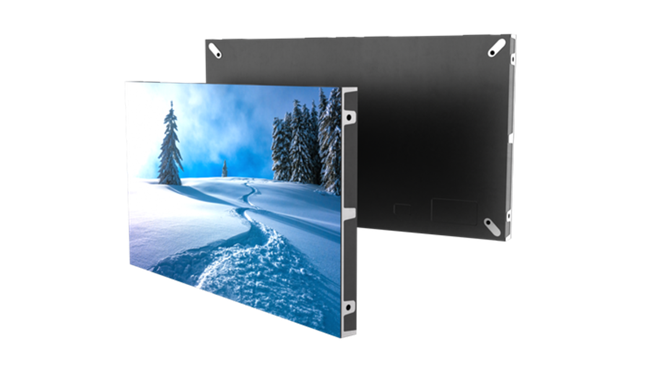

Best price per square metre of any indoor LED in Dubai. Ideal for large video walls, event backdrops, and retail signage where screen area matters.

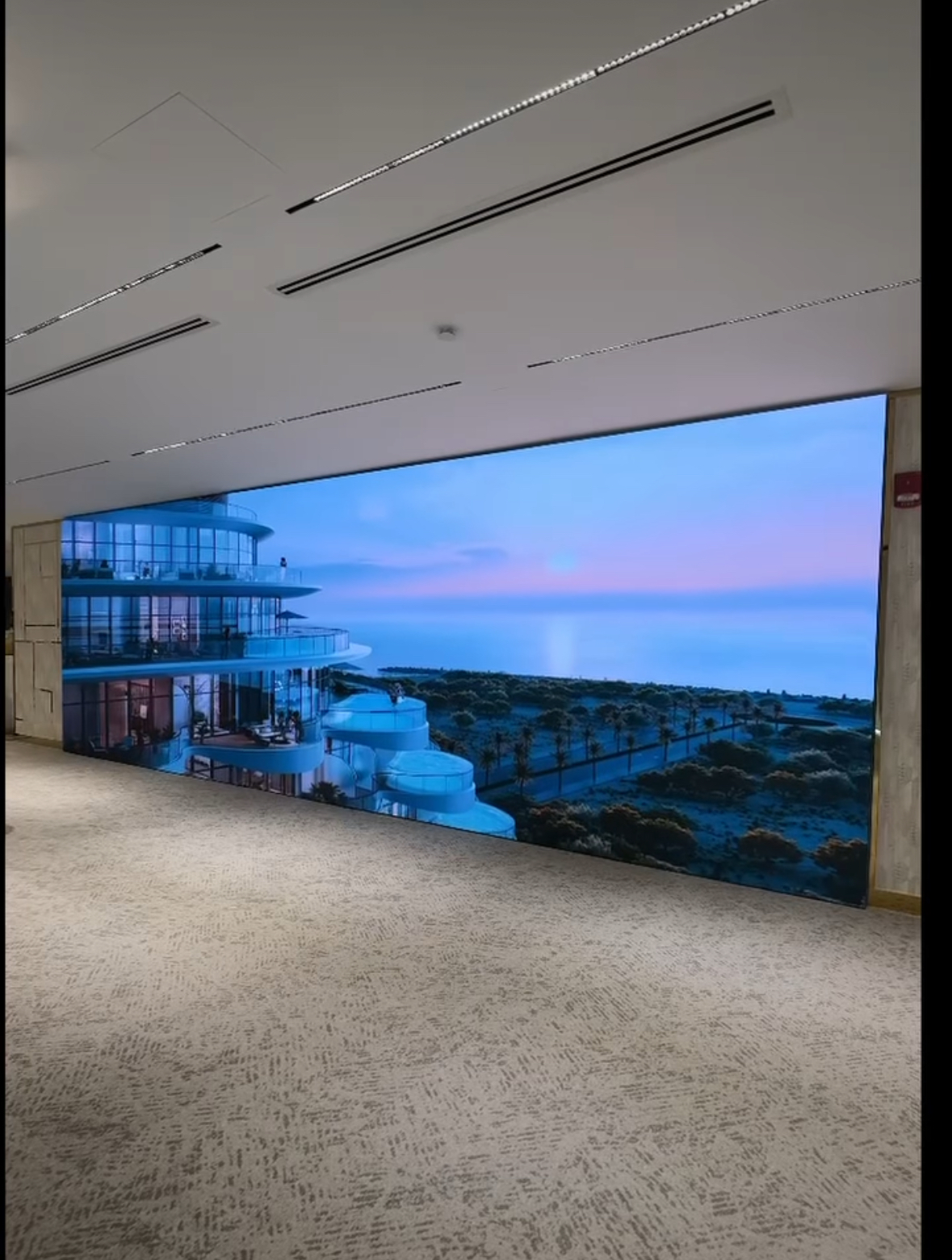

Tiles to any width and height. 16:9, ultra-wide, portrait, L-shaped, or custom. No tooling or lead times for non-standard sizes.

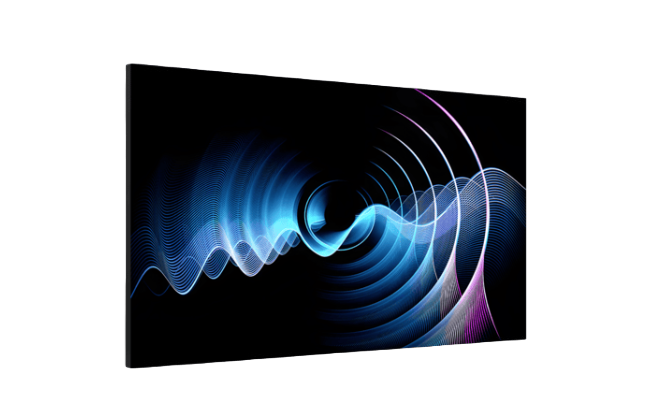

No flicker during camera recording, video conferencing, or live broadcast. Essential for Dubai venues that stream content or host filmed events.
Standard installs in 2 business days. Structural mounting, cabling, controller commissioning, CMS handover. All in-house, no subcontractors.
All pixel pitches at Al Khawaneej 2. Most projects delivered and installed within the same working week. No container shipping.
5000:1 contrast, up to 1200 nits. Designed for mixed light in Dubai commercial spaces: lobbies with floor-to-ceiling glass, malls, showrooms.
SMD LED — Choose the Right Pitch
All pitches share the same cabinet system. Choose based on room size and viewing distance. Free site visit to confirm.
SMD LED Display Specifications
| Specification | Value |
|---|---|
| LED Type | SMD Indoor |
| Pixel Pitches | P2 / P2.5 / P3 / P4 / P5 / P6 |
| Brightness | 800 to 1200 nits |
| Contrast | 5000:1 |
| Refresh Rate | 1920 Hz (P4–P6) / 3840 Hz (P2–P3) |
| Greyscale | 16-bit |
| Viewing Angle (H/V) | 160 / 140 degrees |
| Cabinet Size | 640 × 480 × 80 mm (standard) |
| Cabinet Weight | Approx 9 kg |
| Service Access | Front (rear optional) |
| IP Rating | IP40 front / IP20 rear |
| Avg Power | 220 W/m² |
| Max Power | 700 W/m² |
| Operating Temperature | -10 to 45°C |
| LED Lifespan | 100,000 hours |
| Certifications | CE, RoHS |
| Warranty | 5 years — Dubai on-site |
Watch Our SMD LED Installations
See how StarLED's in-house Dubai team specifies, mounts and commissions SMD video walls across the UAE. Real projects, real footage — no stock video.
SMD LED Applications Across the UAE

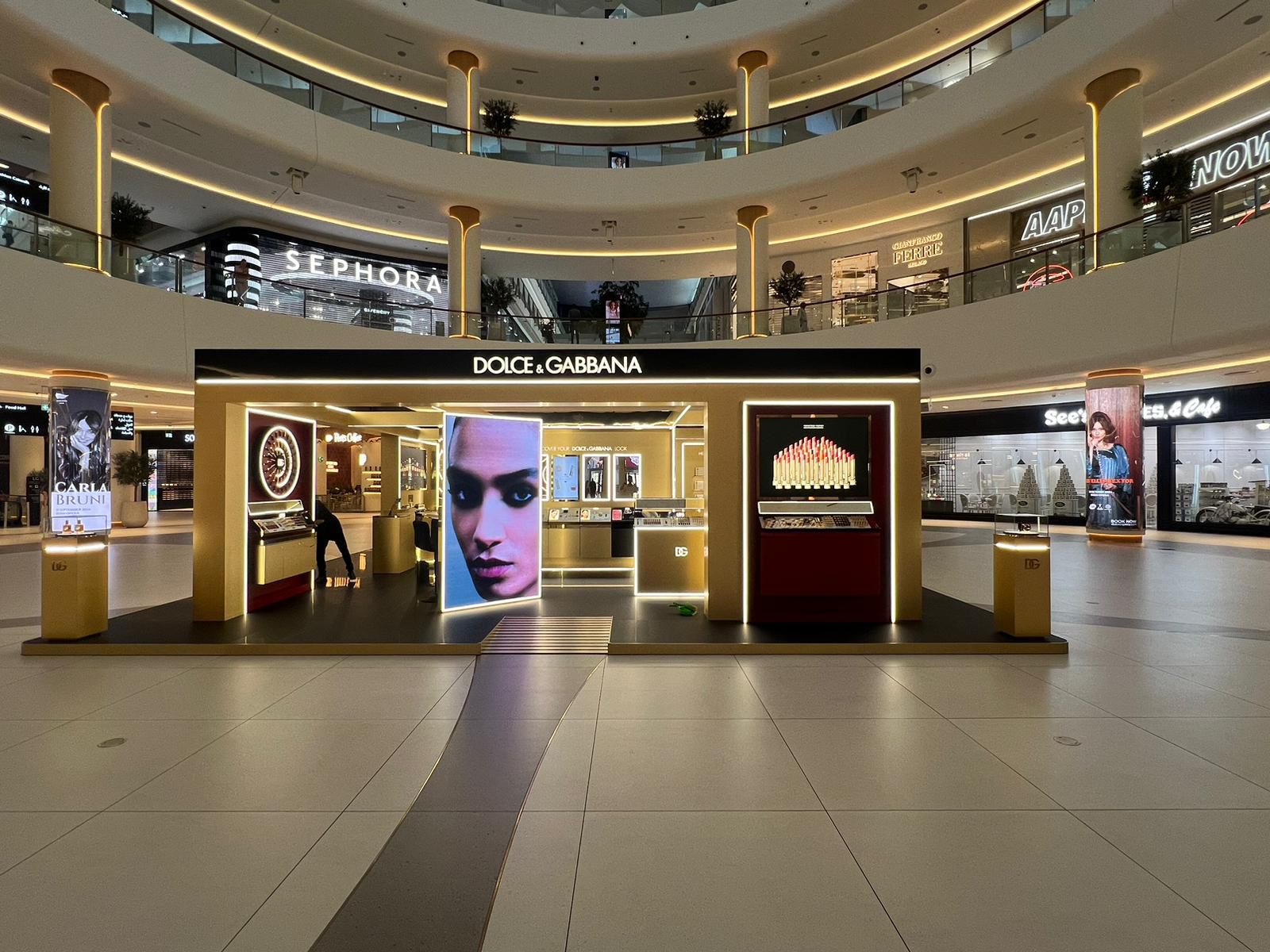

Video walls for shop windows, brand feature walls, and product displays. Modular design adapts to any shop unit width or ceiling height.

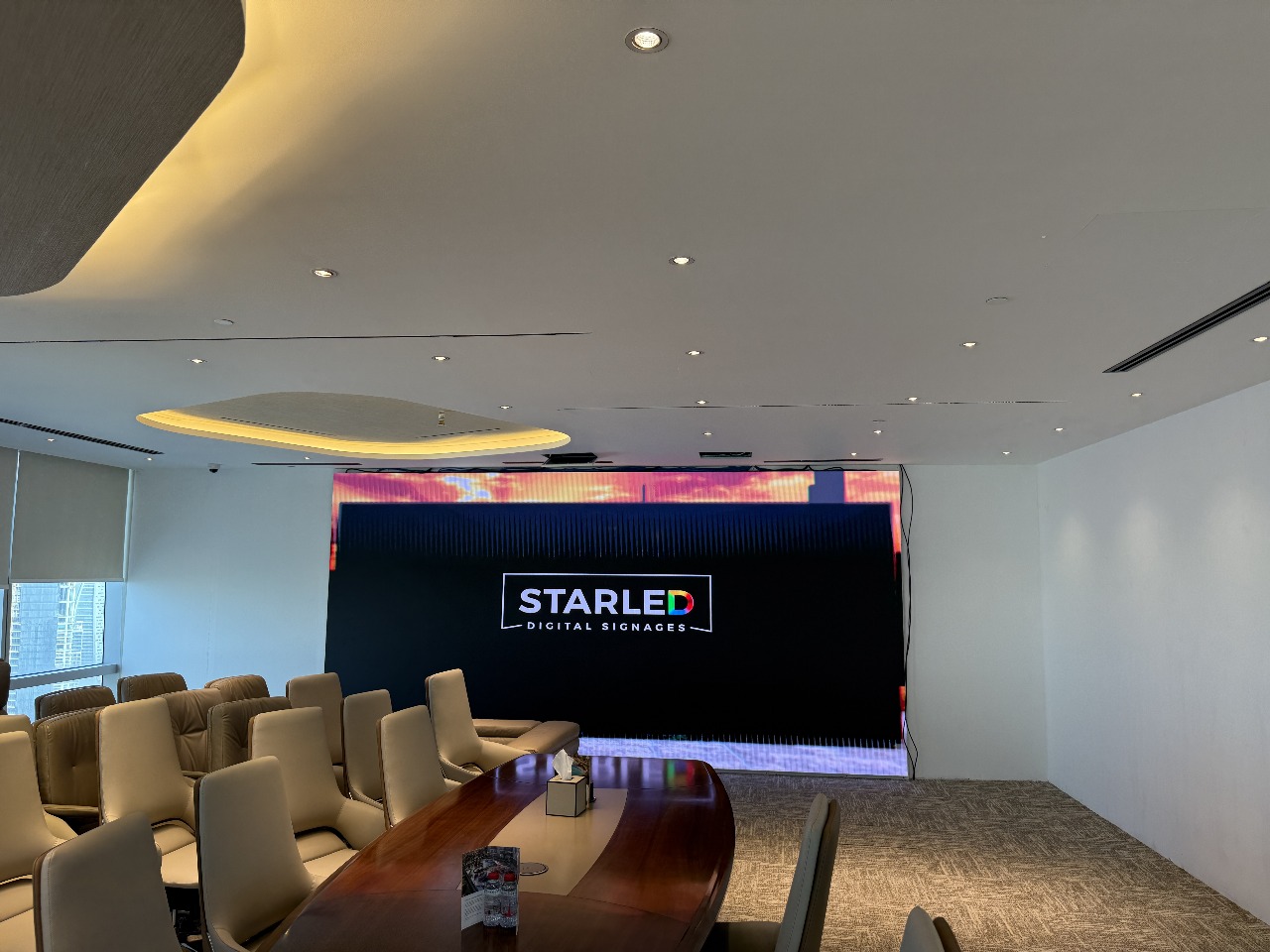

Brand video walls at 3 to 5 m viewing. Crisp text and motion graphics that create the right first impression for clients and visitors.

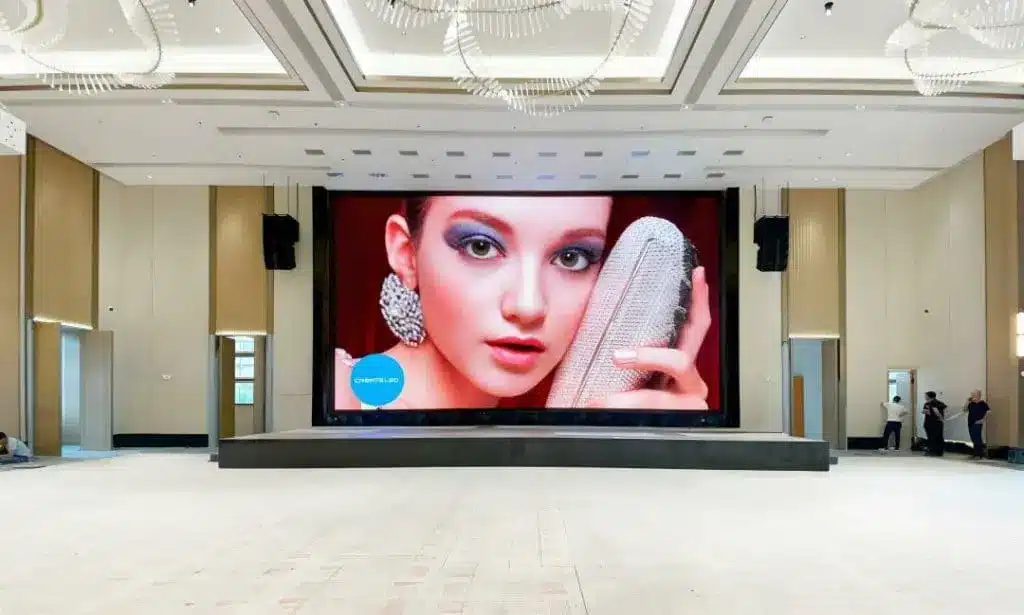

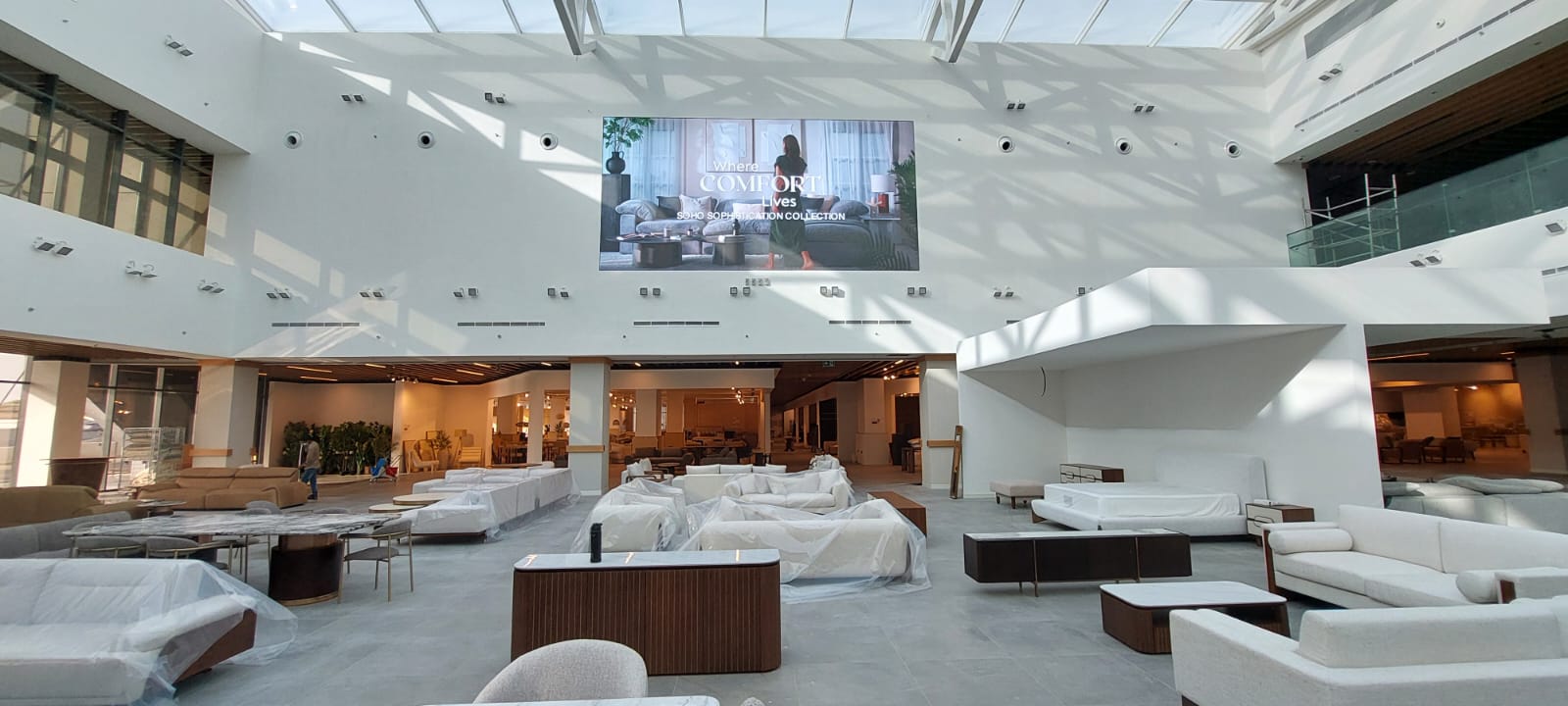

Permanent or semi-permanent video walls for ballrooms and exhibitions. Modular design adjusts per event setup.

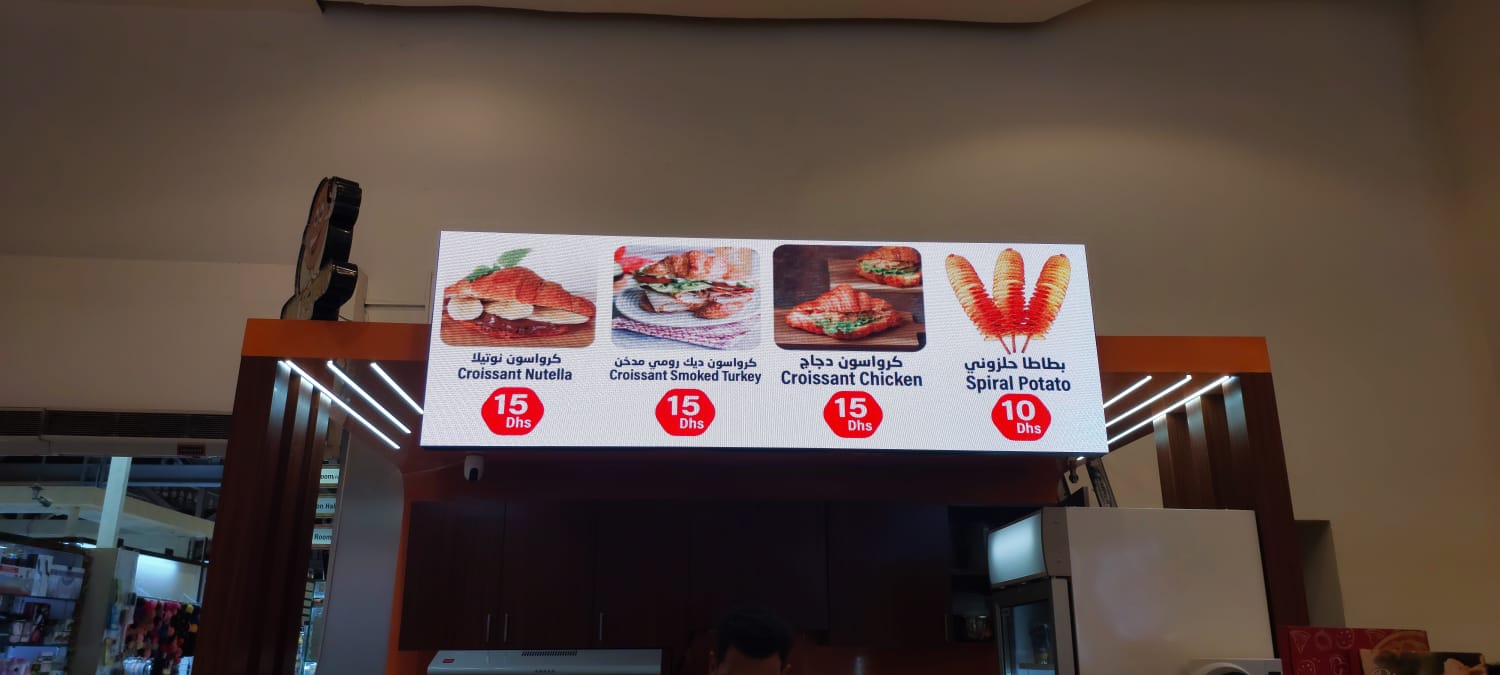

Mall atriums, food court features, restaurant walls. Wide pitch range means cost-efficient deployment at large screen sizes.
Front service simplifies maintenance without disrupting daily operations. CE certification meets school fit-out standards.
Interior video walls for lobbies and meeting rooms. For high-touch environments, our team may recommend COB LED instead.

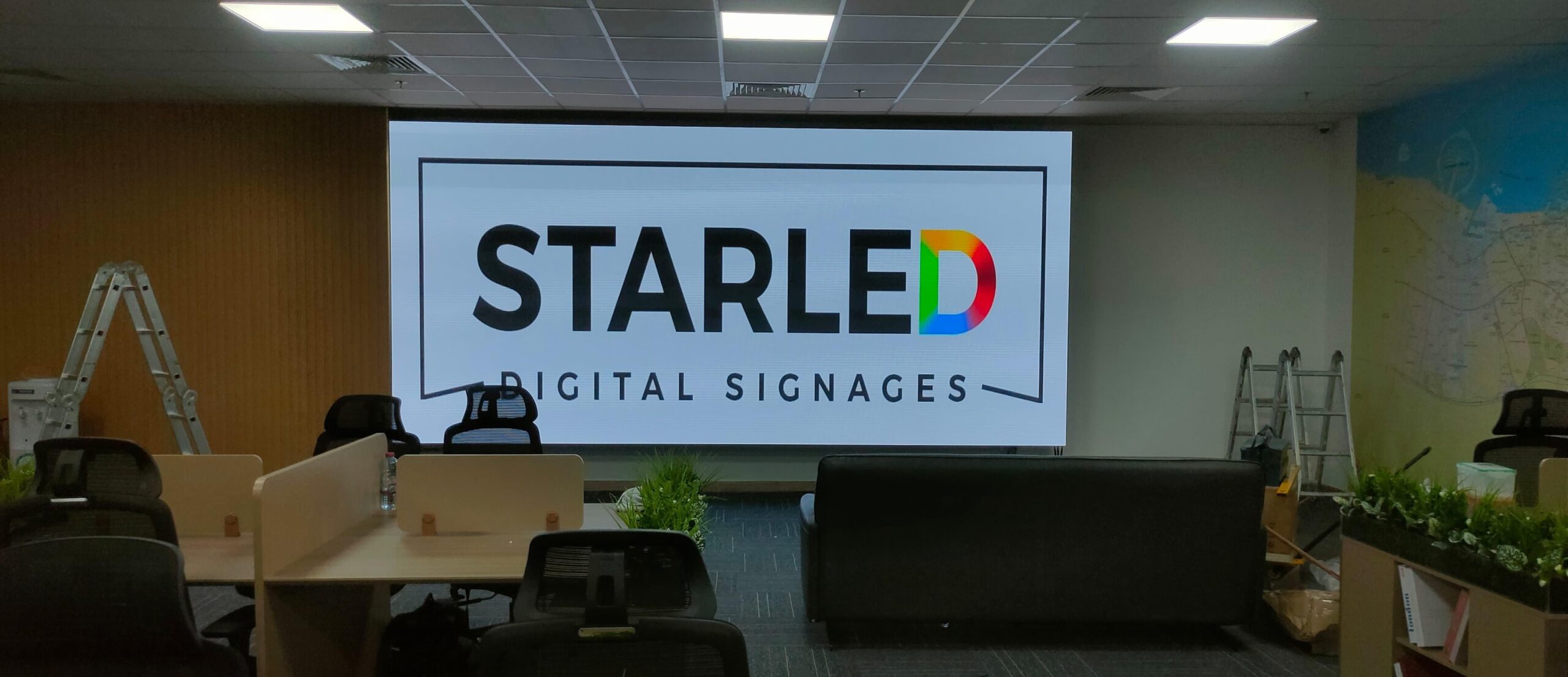

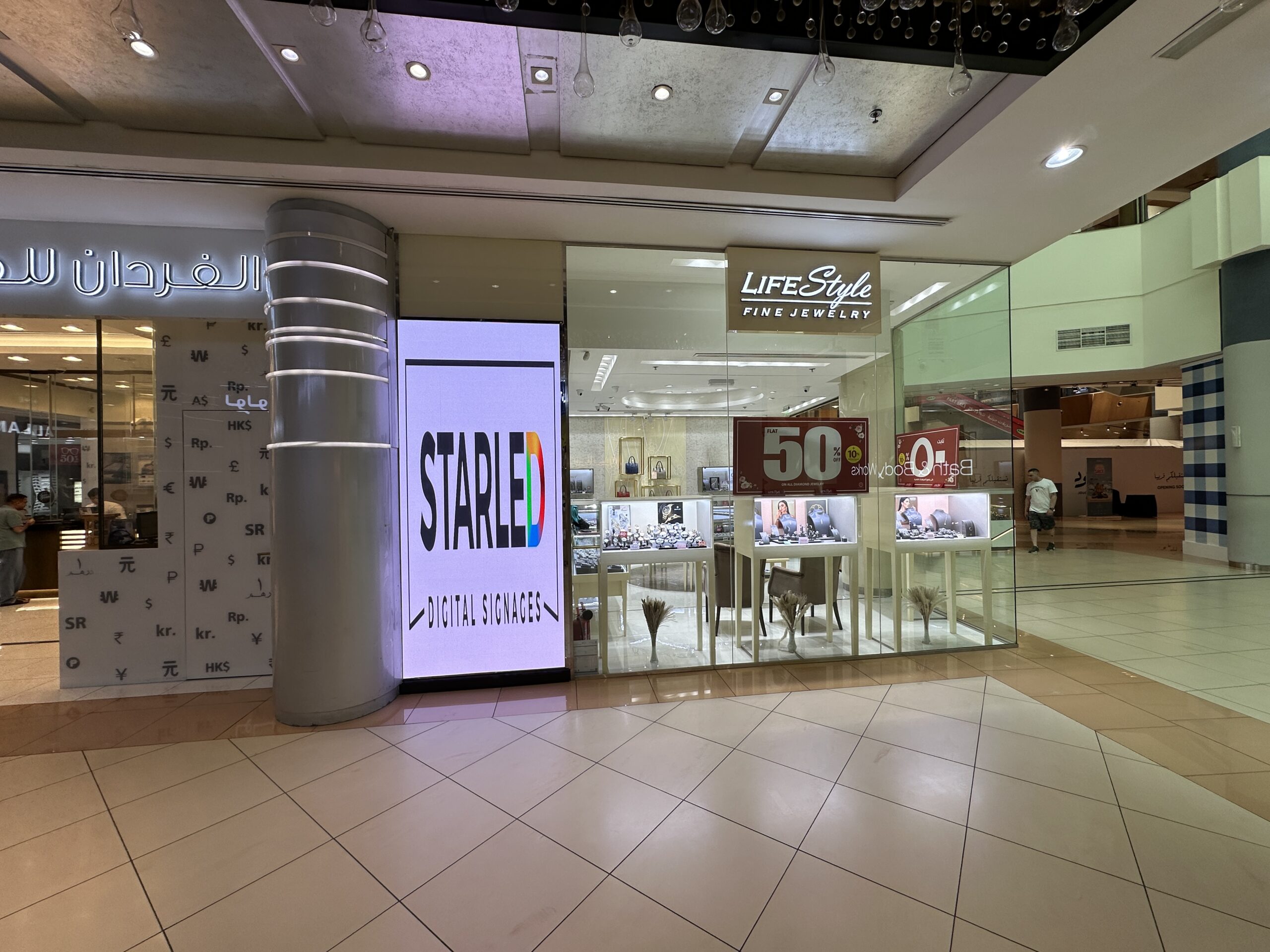

SMD LED Installations
Every project specified, supplied and installed by StarLED's in-house Dubai team.
Compare SMD with Other Indoor Options
IP65 sealed surface, wipe-clean, 100,000-hour lifespan, 10,000:1 contrast. For hotel lobbies, luxury retail, and boardrooms where SMD's exposed surface is a limitation.
View COB LED →Bridges SMD and COB in price and performance. Front service, 3840 Hz, silent operation. For studios and control rooms.
View SLD Series →Browse all StarLED displays including outdoor LED, transparent LED, kiosks, and STEM Series formats.
Browse All →About StarLED — Your Dubai LED Supplier
All six pitches at Al Khawaneej 2. Delivered and installed within 48 hours. No container wait.
We don't subcontract. Installed, commissioned, and handed over by the same team that specified it.
Full documentation for Dubai Municipality permits, DEWA inspections, and commercial fit-out approvals.
On-site within 24 hours. Replacement modules for every pitch held in warehouse. Trusted by 300+ UAE venues.
Ready to Work Together? Transform your business with us!
We challenge any UAE-based price. Seen a lower quote?
Show us, we’ll beat it. You don’t need to go to China. We’ve already brought the factory to you.
Come See It in Action
Want to see the quality before you decide? Visit our Dubai facility and experience a live demo.
Why book with us?
- Ready stock in Dubai & UAE for faster delivery
- In-house engineers for installation & setup
- Transparent pricing, no hidden costs
- Full after-sales support and warranty
Frequently Asked Questions
Common questions from Dubai buyers specifying SMD LED displays for the first time.
