Fine-Pitch COB LED Display for Dubai's Premium Interiors
The NX Series is StarLED's fine-pitch indoor video wall platform, available in P0.9 and P1.25 pixel pitches in Dubai. It uses full flip-chip Chip-on-Board technology where LED chips bond directly to the PCB without individual lens casings. The result is a seamless, glass-smooth display surface with an IP65-rated module face that can be wiped clean. The 16:9 golden ratio cabinet (600 × 337.5 mm) tiles into standard 2K, 4K, and 8K wall configurations without custom scaling. Built for boardrooms, command centres, luxury retail, and hotel lobbies where the display is viewed from close range and expected to last a decade.
- IP65 sealed surface — wipe-clean, dust and moisture resistant
- 16:9 golden ratio — tiles into 2K, 4K, 8K without scaling
- 33.6 mm depth, 4.7 kg — minimal wall load
- 100,000-hour lifespan — longest in the StarLED indoor range
- Full front service — cabinet swap without dismantling the wall
NX Series COB LED — Colours, Depth & Clarity
Experience the seamless glass-smooth surface, vibrant colour reproduction, and ultra-smooth 3840 Hz motion that make the NX Series Dubai's premium indoor COB LED choice — engineered for close-range viewing.
Why Dubai Buyers Specify the NX Series
IP65 sealed against dust and water. Wipe with a damp cloth. The right choice for hotel lobbies, luxury retail, and any environment where staff or guests may touch the screen.
600 × 337.5 mm pure 16:9 ratio. Any multi-cabinet wall assembles into 2K, 4K, or 8K without pixel remainder or edge cropping. No video processor scaling adjustments.
Eliminates flicker during camera recording, video conferencing, and live broadcast. Essential for boardrooms hosting hybrid meetings and broadcast studios.

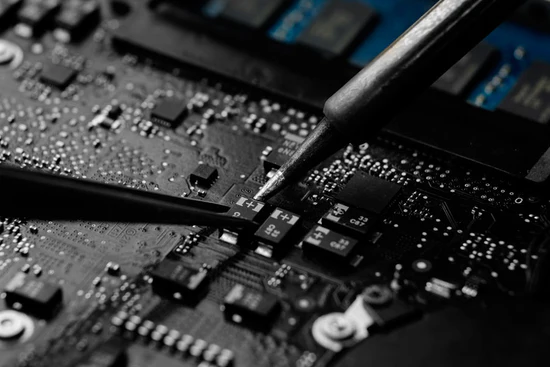

Hub, power supply, and control system on a single board. No separate power boxes or cable runs behind the wall. Faster install, fewer connection failures, simpler service.

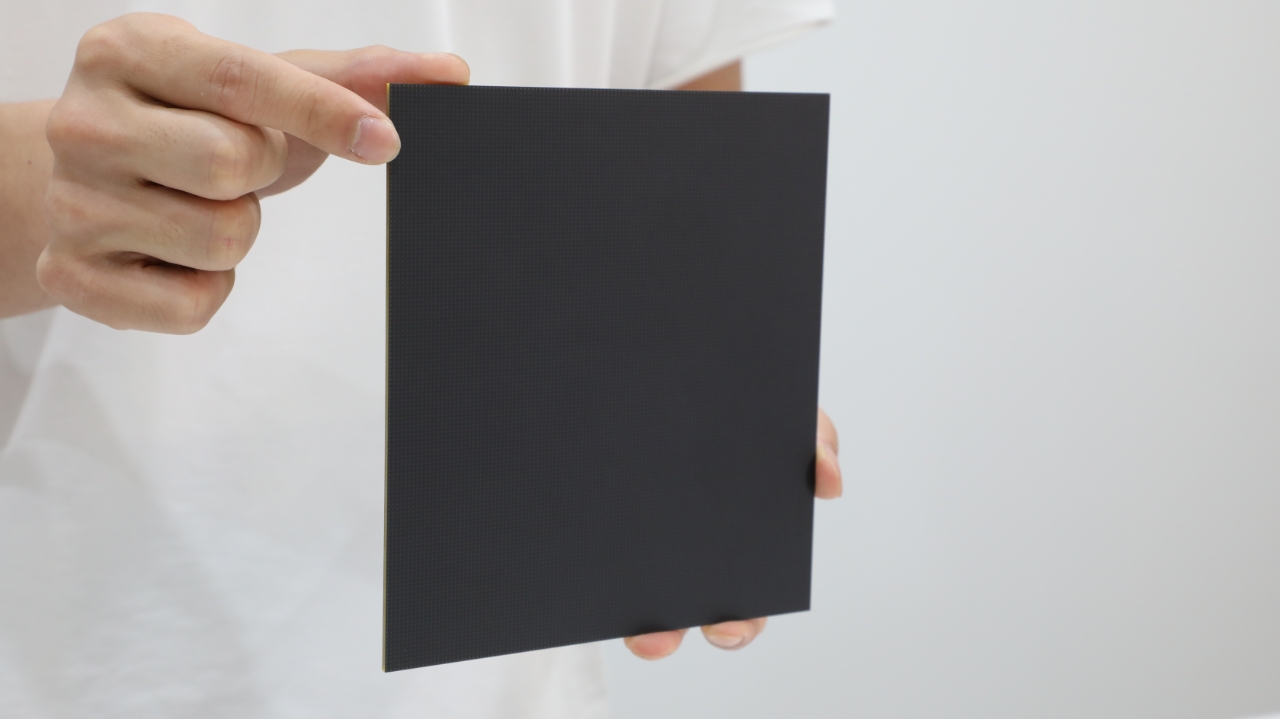

Minimal load on partition walls and stud framing. Near-flush finish against architectural wall surfaces. Perfect for luxury interiors where the display should not protrude.
Flip-chip bonds chips directly to PCB with no intermediate lens or wire-bond. Over 11 years continuous operation. The longest service life in StarLED's indoor range.
NX Series COB — Choose Your Pitch
Both pitches share the same 600 × 337.5 × 33.6 mm cabinet. Choose based on viewing distance.
- Best forBoardroom / Command Centre
- Resolution640 × 360 per cabinet
- Density1,137,777 px/m²
- Contrast13,000:1
- Brightness600–1000 nits
- Best forRetail / Hotel / Studio
- Resolution480 × 270 per cabinet
- Density640,000 px/m²
- Contrast15,000:1
- Brightness600–1000 nits
What Makes the NX Series Different from Standard COB and SMD?
The NX Series is built around three integrated advances absent from standard COB and SMD displays. First, full flip-chip COB bonds LED chips directly to the PCB with no wire bonds or lens structures, producing the IP65 sealed surface and 100,000-hour lifespan. Second, the 3-in-1 driver board combines hub, power supply, and system controller on a single integrated board, eliminating separate power boxes and reducing cabling failures. Third, the 16:9 cabinet ratio at exactly 600 × 337.5 mm means any wall automatically aligns to 2K, 4K, or 8K resolution without pixel scaling.
- Flip-chip COB — no lenses, no wire bonds, flattest indoor surface
- 3-in-1 driver board — fewer cables, fewer connection failures
- 16:9 geometry — pixel-perfect 4K/8K without scaling
| Factor | NX Series | COB PRO |
|---|---|---|
| Pixel pitches | P0.9 / P1.25 | P1.5 / P1.875 |
| Best for | Boardrooms, command centres | Lobbies, large walls |
| Cabinet weight | 4.7 kg | Heavier |
| Cabinet depth | 33.6 mm | Standard |
| 16:9 ratio | Yes — 4K/8K ready | Standard |
| 3-in-1 board | Yes | Separate |
| Refresh rate | 3840 Hz | 3840 Hz |
| IP rating | IP65 | IP65 |
| Price per m² | Higher (finer pitch) | Lower |
Need an NX Series datasheet or same-day AED quote?
StarLED Dubai responds within 2 hours. NX Series stock available for immediate delivery.
NX Series COB LED Specifications
| Specification | NX COB P0.9 | NX COB P1.25 |
|---|---|---|
| LED Type | Full Flip-Chip COB | |
| Pixel Pitch | 0.9375 mm | 1.25 mm |
| Cabinet Resolution | 640 × 360 px | 480 × 270 px |
| Pixel Density | 1,137,777 px/m² | 640,000 px/m² |
| Cabinet Size (W × H × D) | 600 × 337.5 × 33.6 mm (16:9) | |
| Cabinet Weight | 4.7 kg | |
| Material | Die-Cast Aluminium (CNC precision) | |
| Module Size | 150 × 168.75 mm | |
| Modules Per Cabinet | 4 × 2 | |
| Brightness | 600 to 1000 nits (adjustable) | |
| Contrast Ratio | 13,000:1 | 15,000:1 |
| Viewing Angle (H/V) | 160 degrees | |
| Colour Temperature | 3000 to 10000 K (adjustable) | |
| Refresh Rate | 3840 Hz | |
| Grayscale Depth | 16 bit | |
| Drive Mode | Constant Current Common Anode | |
| Avg Power Consumption | 120 W/m² (600 nit) / 160 W/m² (1000 nit) | |
| Max Power Consumption | 335 W/m² (600 nit) / 480 W/m² (1000 nit) | |
| IP Rating | IP65 Module Surface | |
| Operating Temperature | -10 to 45°C | |
| LED Lifespan | 100,000 hours (typical) | |
| Driver Board | 3-in-1 (HUB + PSU + System) | |
| Certifications | CE, CB | |
Crystal-Clear Visuals: NX Series COB Display
See the wipe-clean surface, true-colour accuracy, and seamless tile-free finish that make the NX Series the premium choice for Dubai's most demanding interiors.
NX Series Applications Across the UAE

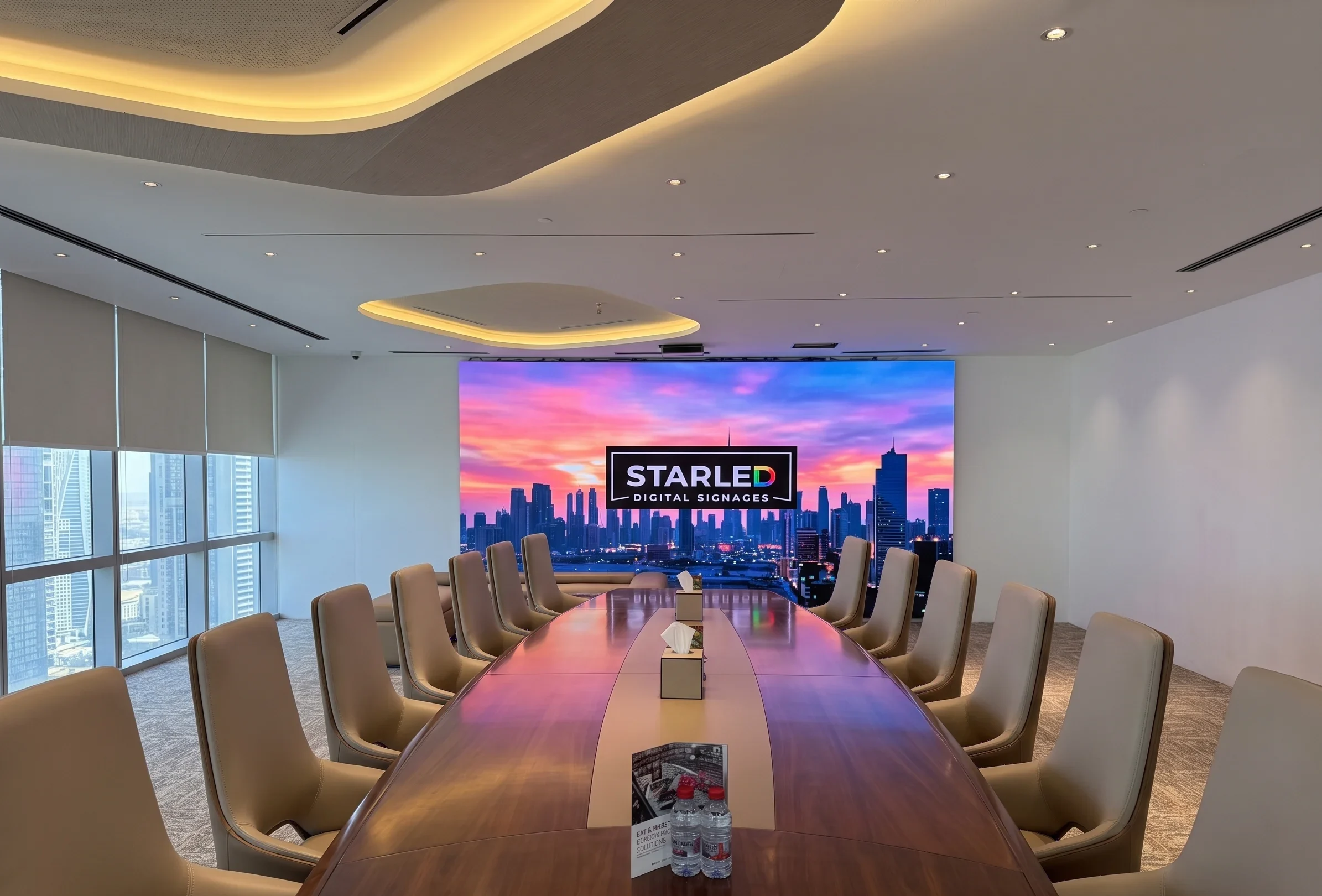

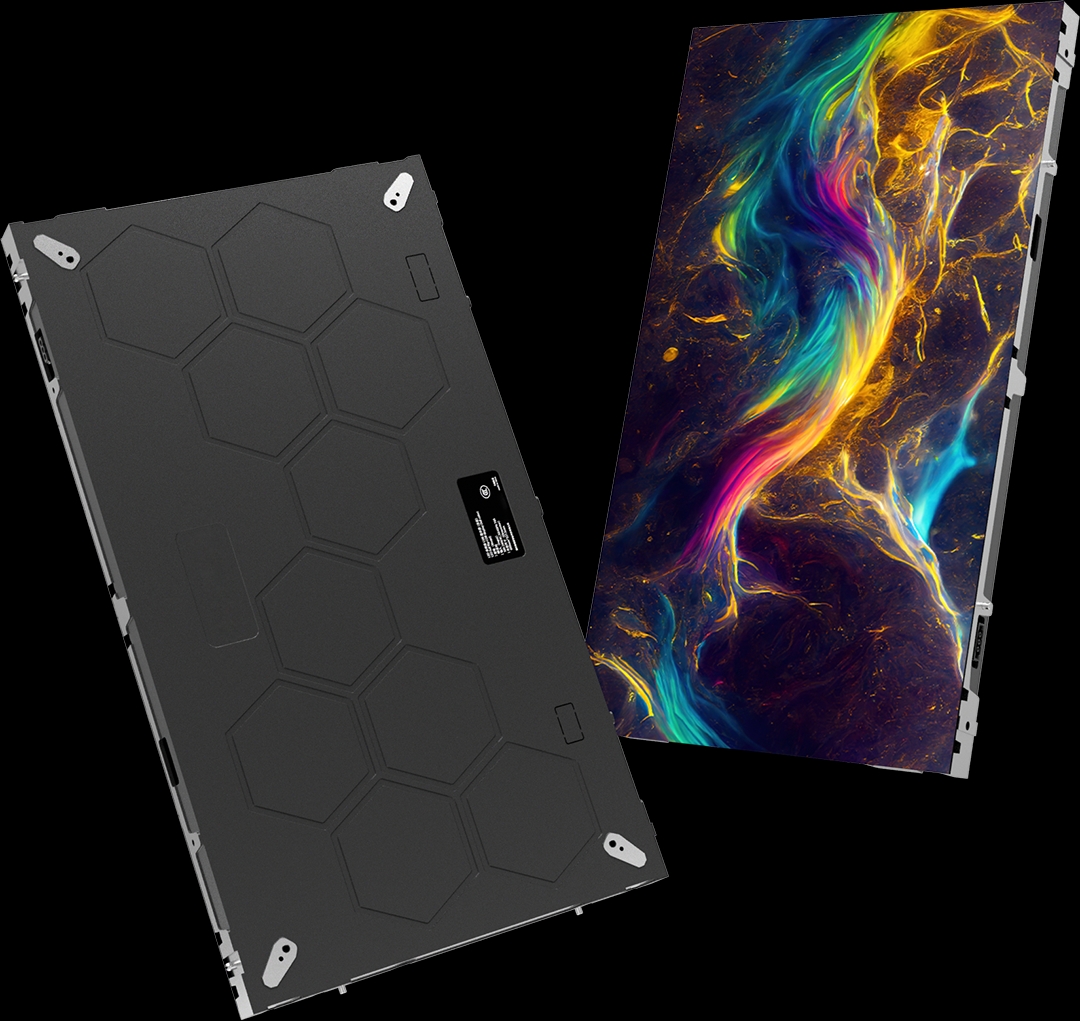

Viewed from 2 to 4 metres. IP65 surface meets hygiene expectations of premium corporate fit-outs in the UAE's financial and government districts.

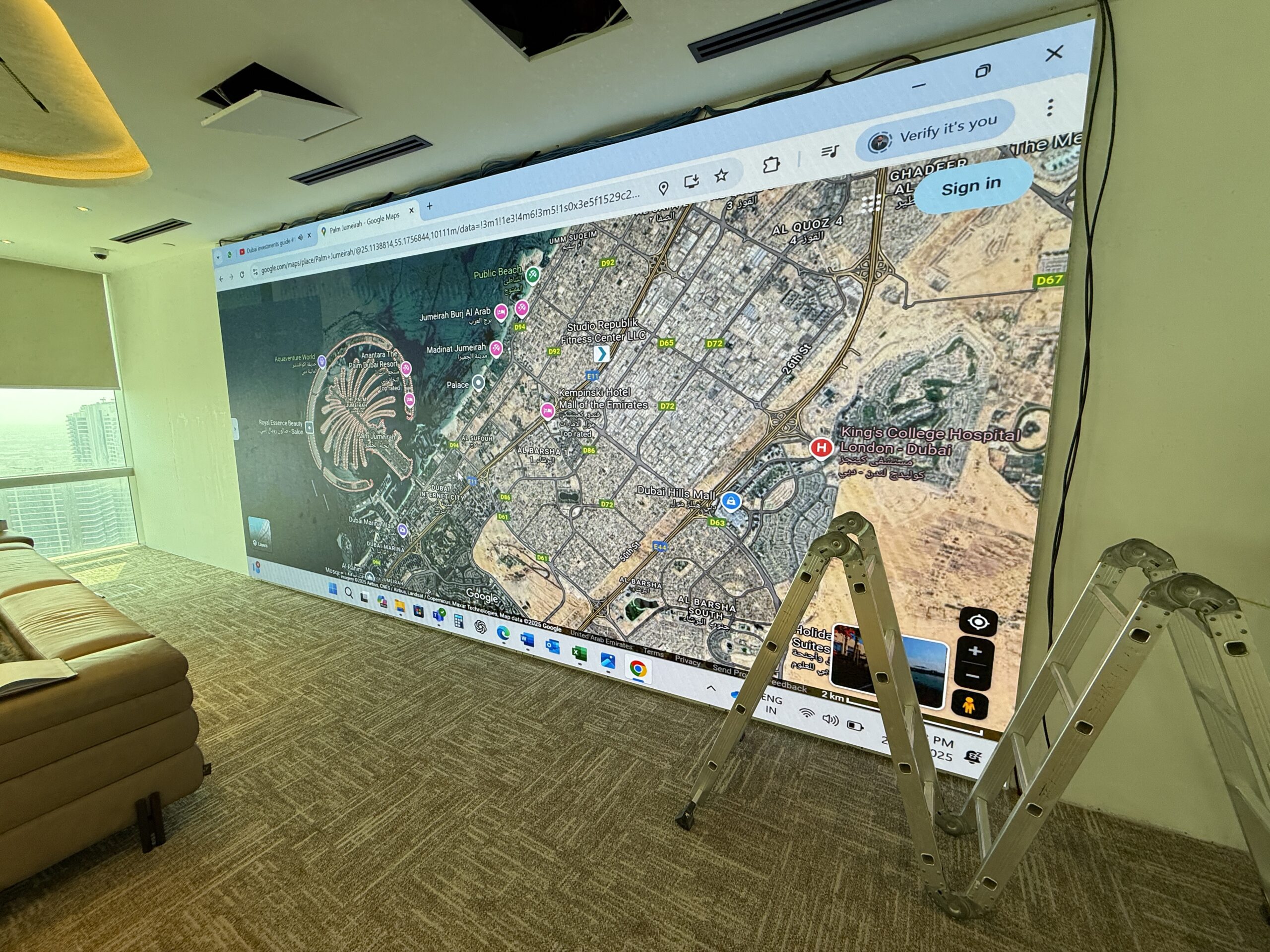

Operators view data feeds from 1 to 2 metres. 16:9 cabinet tiles directly into multi-feed resolution layouts required by control room software platforms.

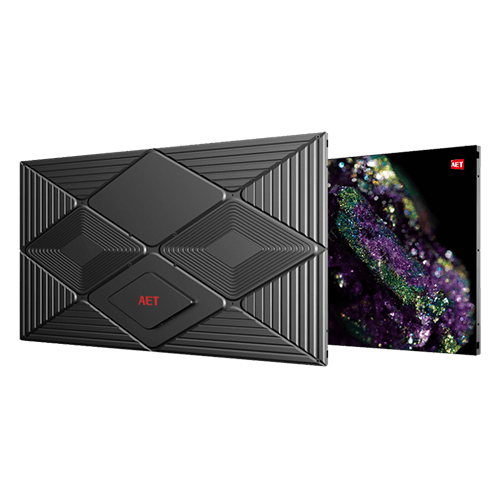

IP65 sealed surface withstands customer proximity. Colour accuracy for fashion and jewellery presentation under high ambient lighting typical of Dubai malls.
Centrepiece of the arrival experience. Housekeeping includes display in daily cleaning. 33.6 mm sits flush against architectural finishes without protruding frames.
3840 Hz eliminates scan lines from broadcast cameras. 16-bit greyscale and adjustable colour temperature (3000–10000 K) ensure on-camera colour accuracy.
Presenters work close to the display. Front service during short facility closures without disrupting the teaching environment or dismantling the installation.

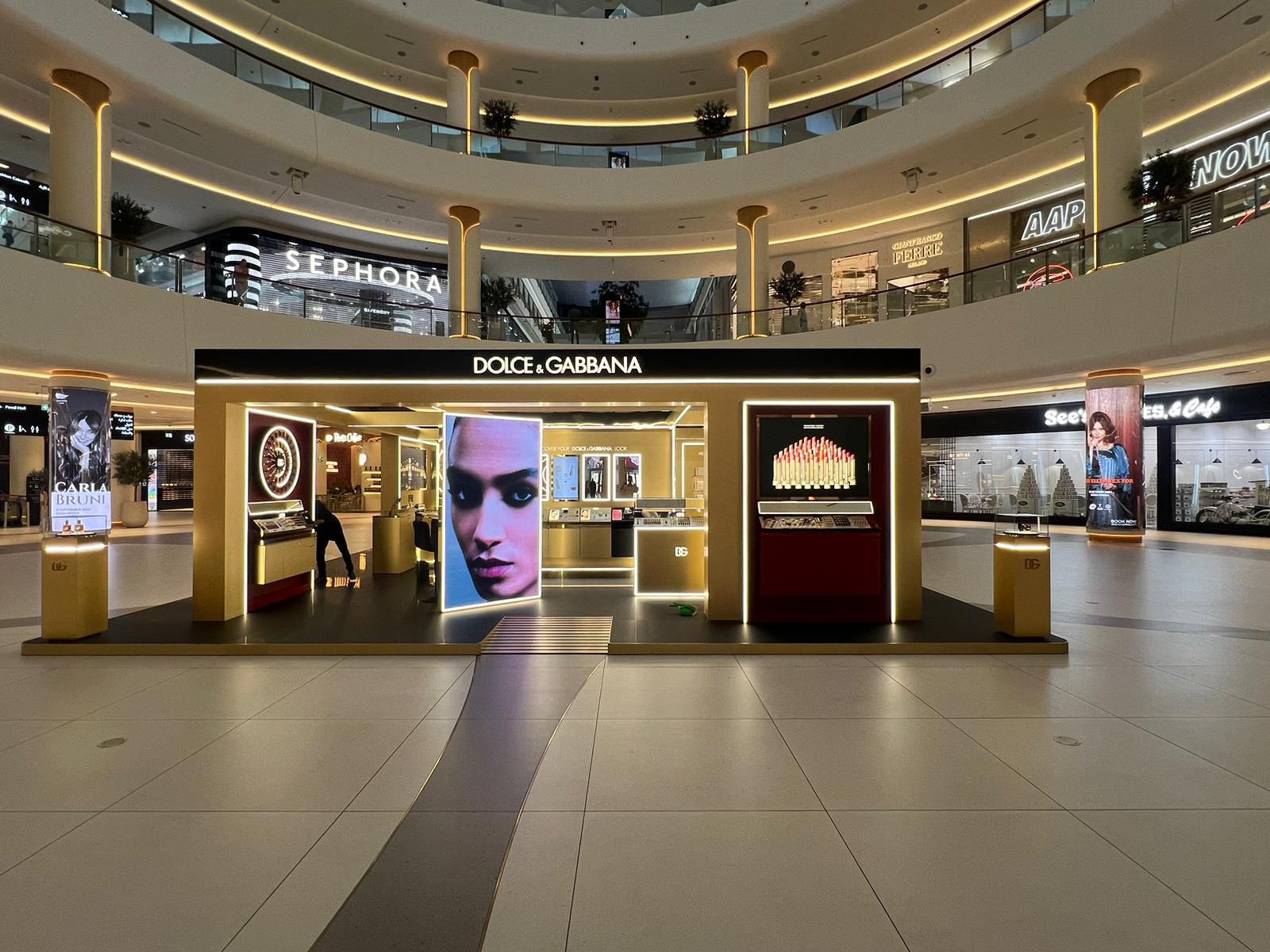

NX Series Installations
Every project was specified, supplied, and installed by StarLED's in-house Dubai team.
COB LED Displays in Dubai — Full Range

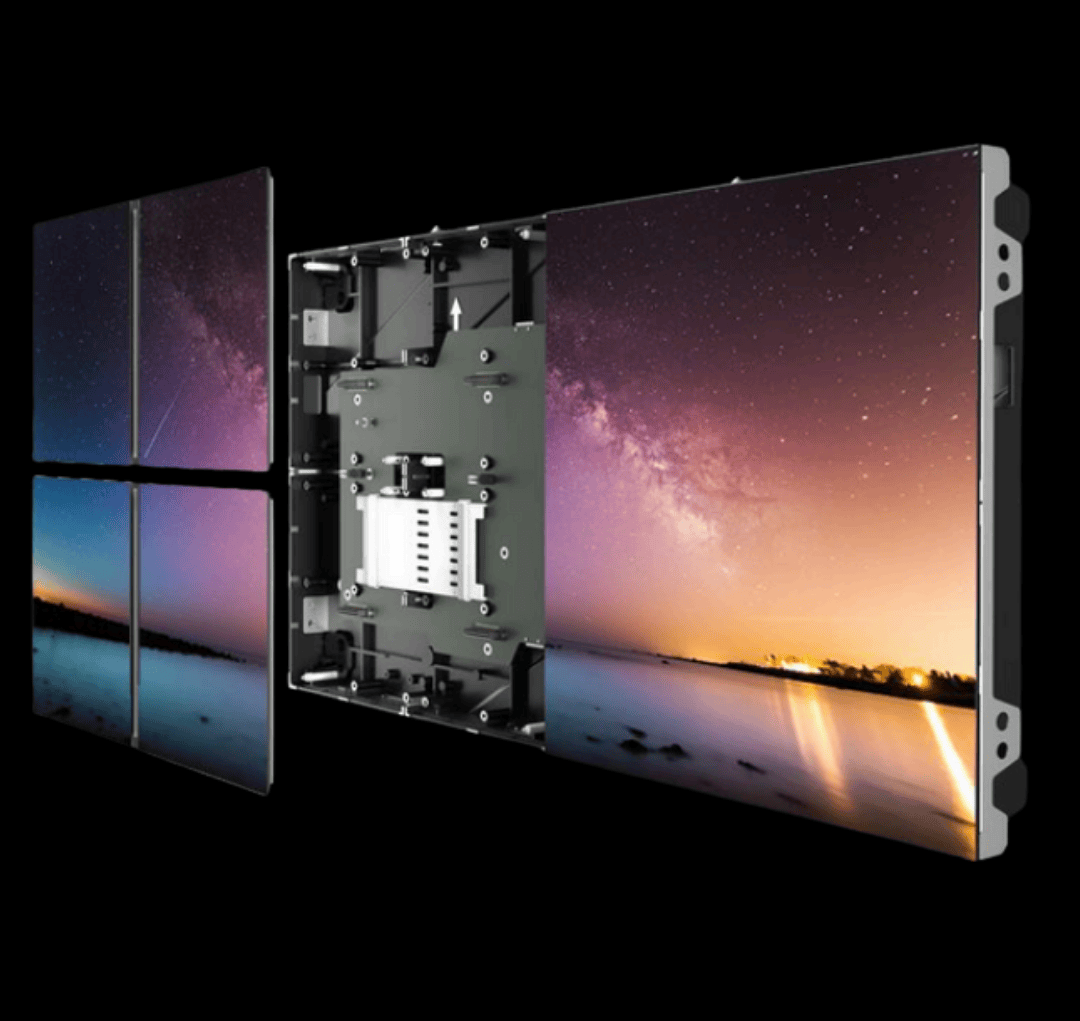

Larger-format COB for lobbies, conference halls, and exhibitions at 3 m+ viewing. Shares IP65 surface with NX but lower cost per m². Ideal where scale matters over close-range density.
Compare COB PRO →Browse the complete StarLED COB range for Dubai — NX Series, COB PRO, and NX COB across all available pixel pitches from P0.7 to P1.875.
Full COB Range →
Cost-effective alternative for 3 m+ viewing. When the display is wall-mounted behind reception or mounted high in a lobby where contact is unlikely.
SMD Indoor LED →Why Choose StarLED for NX Series in Dubai?
NX Series P0.9 and P1.25 held at Al Khawaneej 2. Delivered and installed within 48 hours. No container shipping or customs delays.
We don't subcontract. Certified technicians handle every NX installation from site survey to CMS handover. Zero third-party risk.
CE and CB certification. Full documentation for Dubai Municipality permits, DEWA sign-off, and corporate fit-out completion certificates.
On-site within 24 hours across Dubai and Abu Dhabi. Replacement cabinets for both pitches held in our warehouse. No return-to-factory wait.
