What Makes COB LED Different?

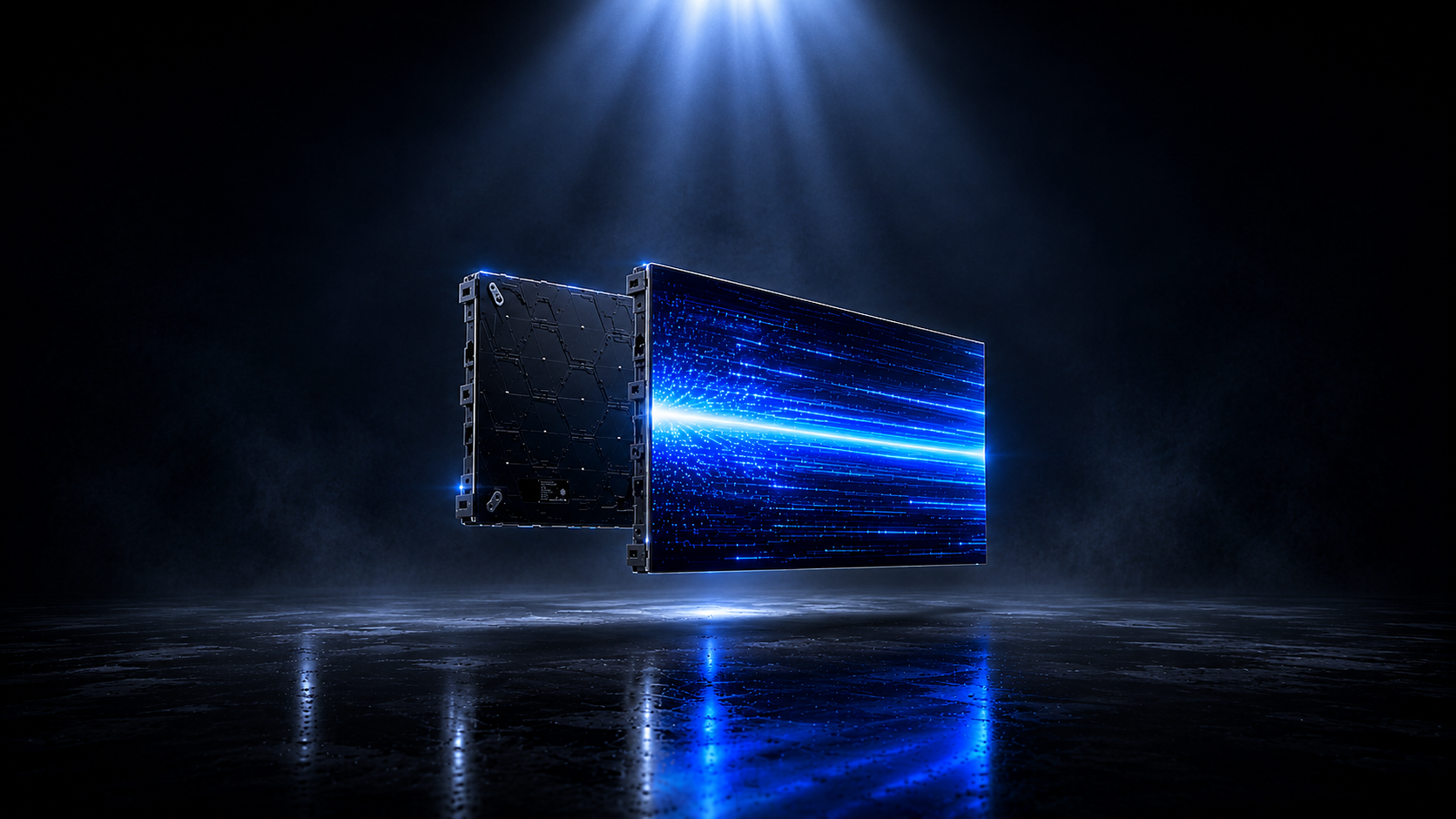

In standard SMD displays, each LED sits inside a raised plastic housing. In COB, the chips bond directly to the PCB and seal under epoxy resin. The result is a completely flat, seamless, washable surface with no exposed parts to break or collect dust.
- Flat sealed surface — safe to wipe clean
- IP65 module surface — dust, moisture, impact resistant
- 170° viewing angle — consistent from any position
- Flip-Chip bonding — lower power, longer life
Put to the Toughest Test
COB LED's epoxy-sealed surface survives what would destroy any standard SMD display. We tested it with direct impact, water spray, abrasive cleaning, and continuous pressure. Watch the result.
6 Reasons Dubai Businesses Choose COB
Epoxy-encapsulated face. Dust-proof, moisture-resistant, safe to wipe clean. Critical for high-traffic Dubai retail and hospitality venues.
Deeper blacks and brighter whites than any SMD equivalent. COB's flat sealed surface eliminates internal light scatter for stunning visual depth.
No rolling shutter or moire when filmed. Essential for retail photographed by customers and broadcast studios where every frame matters.
Consistent colour and brightness from almost any position. No hot-spots. No colour shift. Every seat sees the same image quality.

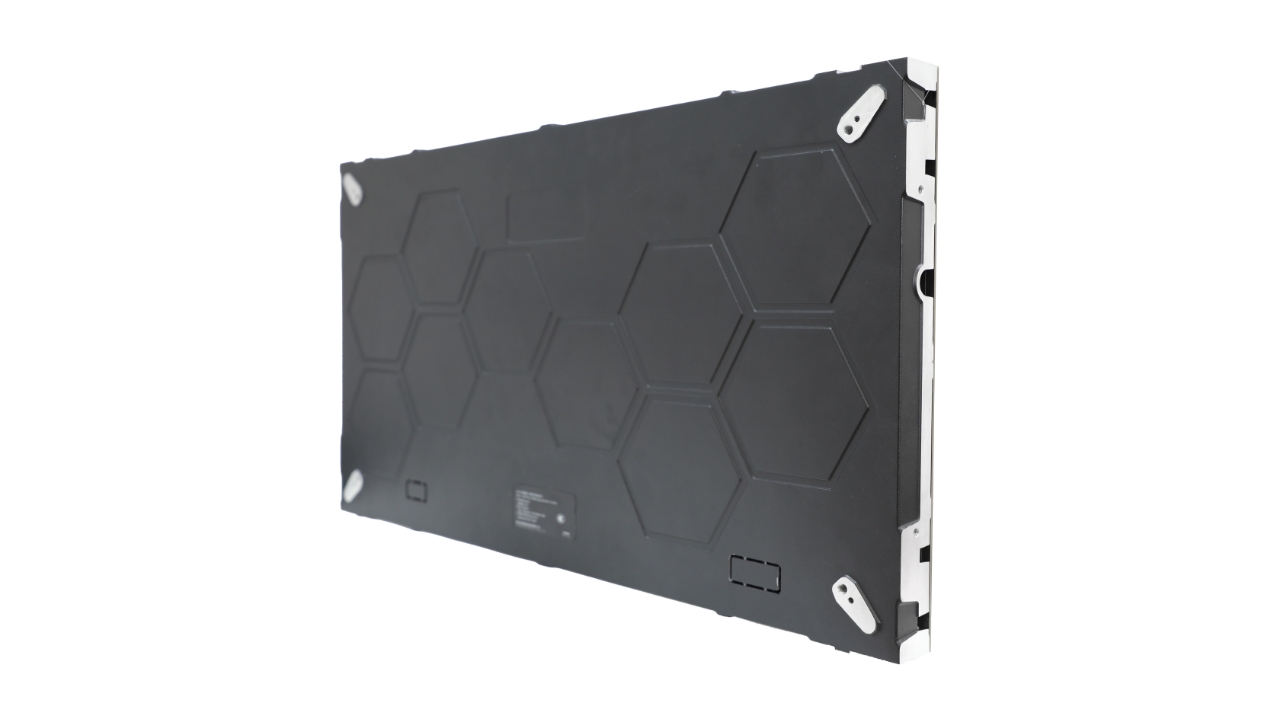

All maintenance from the front. Your wall finish stays intact. Fast, minimally disruptive, requires no structural access from behind.
No wire bonds means lower power draw, better heat transfer, and longer LED lifespan. Direct chip-to-substrate reduces energy use and running costs.
Which Pixel Pitch for Your Space?
The closer your audience stands, the smaller the pitch needed. Our Dubai team specifies the exact pitch for your space at no charge.
- Control Rooms
- Boardrooms
- Luxury Retail
- Broadcast Studios
- Hotel Lobbies
- Meeting Rooms
- Showrooms
- Government Offices
- Conference Halls
- Smart Campuses
- Retail Atria
- Training Rooms
Technical Specifications
| Specification | Value |
|---|---|
| LED Technology | Full Flip-Chip COB |
| Pixel Pitches | P0.9 / P1.25 / P1.5 / P1.56 |
| Cabinet Size (W × H) | 600 × 337.5 mm, 16:9 ratio |
| Cabinet Depth | 33.6 to 35 mm |
| Cabinet Weight | 4.6 to 4.7 kg per cabinet |
| Cabinet Material | Die-cast Aluminium (CNC precision) |
| Brightness | 600 to 1000 nits (adjustable) |
| Refresh Rate | 3840 Hz to 7680 Hz |
| Grayscale Depth | 13 to 16 bit |
| Contrast Ratio | Up to 100,000:1 |
| Viewing Angle (H/V) | 160 to 170 degrees |
| IP Rating | IP54 (COB PRO) / IP65 (NX COB, module surface) |
| Operating Temperature | -10 to 45°C (COB PRO to 60°C) |
| Input Voltage | AC 100 to 240 V, 50/60 Hz |
| Service Access | Front only |
| LED Lifespan | 100,000 hours (typical) |
| Certifications | CE, CB |
See How These Screens Take Shape
From raw PCB substrates to sealed, tested, and calibrated COB LED cabinets. Every step happens under controlled factory conditions before it reaches our Dubai warehouse.
Where COB LED Performs Best
Create an immersive high-stakes environment where architectural renders come to life. 16-bit color processing ensures every detail of the property is showcased in cinematic quality.
The ultimate private viewing experience with zero noise and seamless integration. Ultra-fine pixel pitch provides a crystal-clear display that outperforms traditional projection, even in daylight.
4K content at P1.25 viewed from 2 metres. No visible pixel structure. Dual power supply ensures zero downtime during presentations.
16-bit grayscale. Up to 7680 Hz refresh. No eye fatigue during 12-hour shifts. Critical alerts are unmistakable.
160° angle means no bad seat in a 200-person lecture hall. Front-service requires no wall damage. Built to outlast a fit-out cycle.

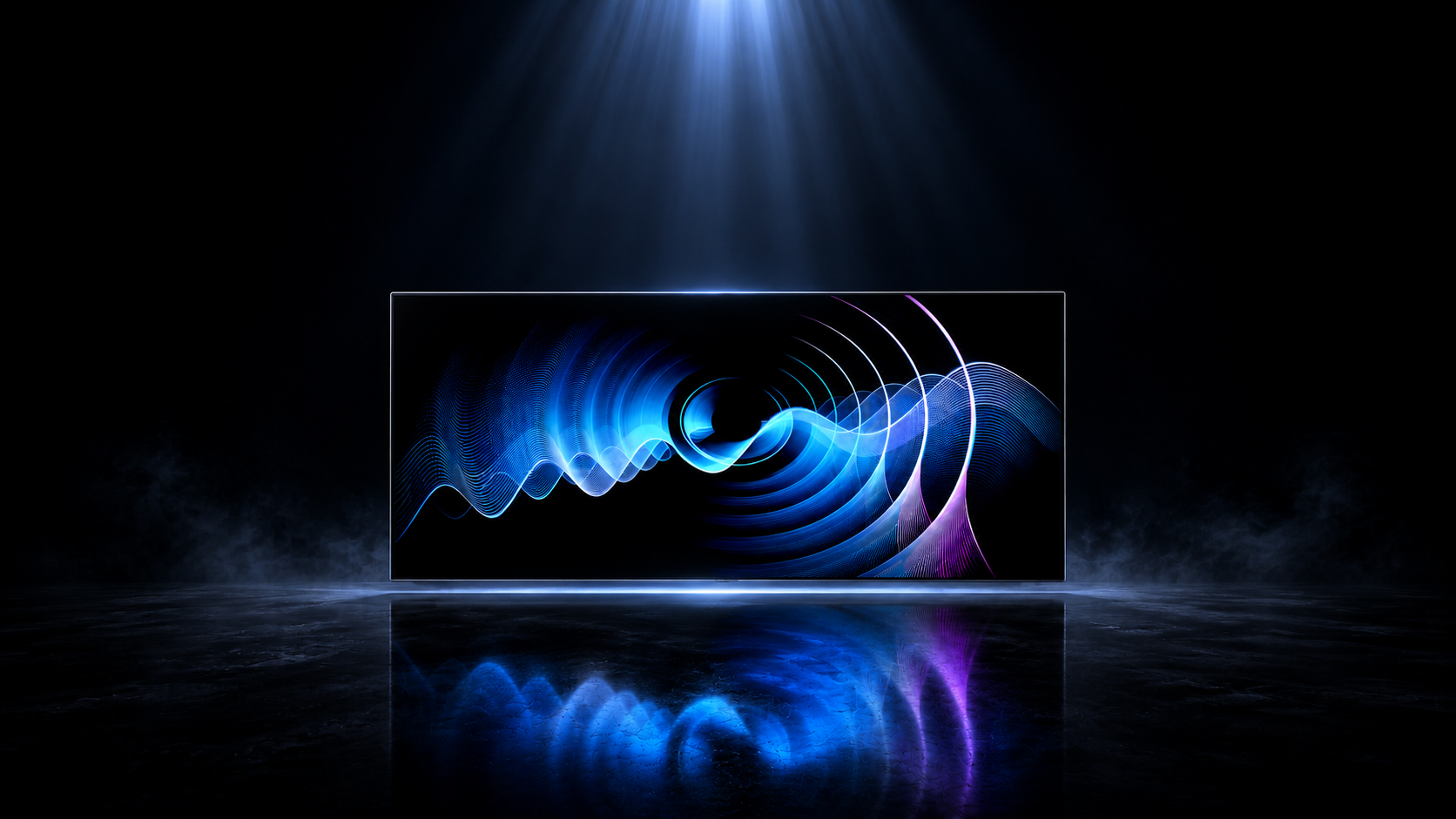

Camera-ready. 3840 Hz eliminates rolling shutter and moire. Permanent backdrop, live set, or XR stage — broadcast-grade by specification.
COB LED Projects in the UAE
Every installation was specified, supplied, and completed by StarLED's in-house Dubai team.
Explore the Full COB LED Range
16:9 golden ratio cabinet. 3840 Hz refresh. IP65 module surface. Common cathode drive. The benchmark indoor COB choice.
View NX Series COB →Top-tier flip-chip COB. Up to 7680 Hz refresh. IP54. Dual power supply for zero-downtime. For broadcast, control rooms, and luxury commercial.
View COB PRO →Cost-effective, full front-service COB. 100,000-hour lifespan. 16:9 ratio. CE and CB certified. Accessible entry point into COB LED technology.
View NX COB →Why Choose StarLED for COB LED in Dubai?
Over 2,000 m² at Al Khawaneej 2. Most COB projects delivered and installed within days of sign-off.
We don't subcontract. Certified technicians handle every COB installation with the tools for COB flatness tolerances.
Callouts within 24 hours. No return-to-factory. Spare modules for every active product held in our Dubai warehouse.
Site visit, environment assessment, and written spec recommendation. Pixel pitch, cabinet count, structural requirements. No charge.
